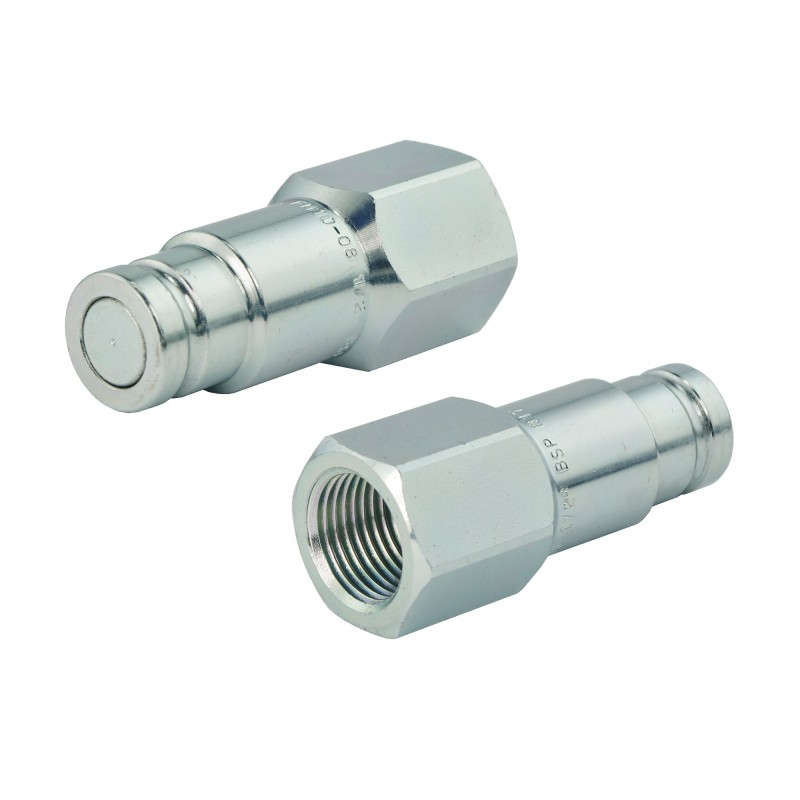

Flat quick connector, dry-cut, plug 1 2

HYDRAULIC QUICK CONNECTOR FLAT PLUG WITH DRY CUTTING THREAD 1/2' Production:

Original product of the Hydrolider brand, symbol: 1.60.55.260

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The main advantage of the entire series dry-cut quick connectors is the quality of workmanship and virtually zero oil leakage when connecting and disconnecting the quick connectors. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor. They are recommended wherever leakage of oil or other liquids may be dangerous to employees or other equipment.

Helpful data:

BSP 1/2' thread diameter measured with a caliper:

Outer diameter [mm]: 20.5 - 20.9

Diameter internal [mm]: 18.6 - 19.0

Technical data:

Thread on the cable side: inch BSP 1/2'

Thread type: internal

Quick connector type: dry-cut flat plug, ISO standard

Weight: 0.20 kg

Type liquid: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
