Flow divider valve 50:50 V-EQ25 1/2' 25-40l 250bar MIZAR number: 73431

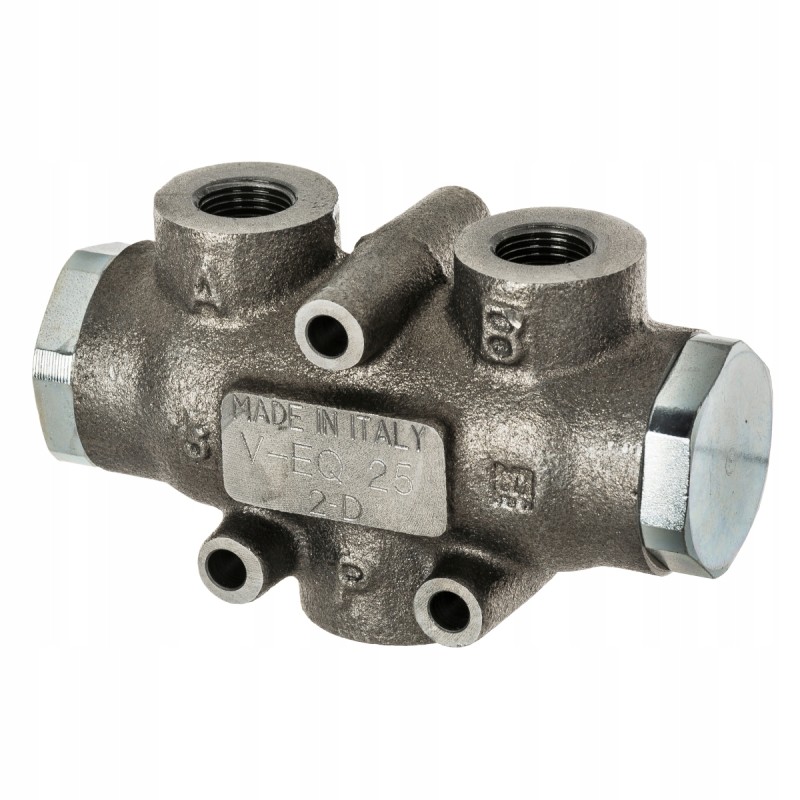

Flow divider valve 50:50 V-EQ25 1/2' 25-40l 250bar

* It is ideally used when two identical actuators, working independently, powered by one pump and controlled from one, the same distributor, must work at the same pace.

* In most cases, the use of a regular tee is not enough.

* The valve also works in systems where it is required to divide the main oil stream coming from the pump into two equal and independent streams from which two independent hydraulic systems can be created.

* The stream divider allows you to divide the work stream into two identical streams.

* The stream is always divided equally, regardless of the change in flow (within the recommended range), pressure and load of individual receivers.

* The divider can also combine two incoming streams into one main stream.

Technical information:

Connection: Connect P to the power line and A and B to the receivers .

Recommended range of flow entering P: 25-40L/min

Number of hydraulic holes in the body: 3

Internal threads in the body: 1/2' BSP

Material: cast iron

Permissible maximum pressure: 250bar

Permissible ambient temperature: -40 C to +60 C

Permissible temperature oil: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil

MIZAR number: 73431
