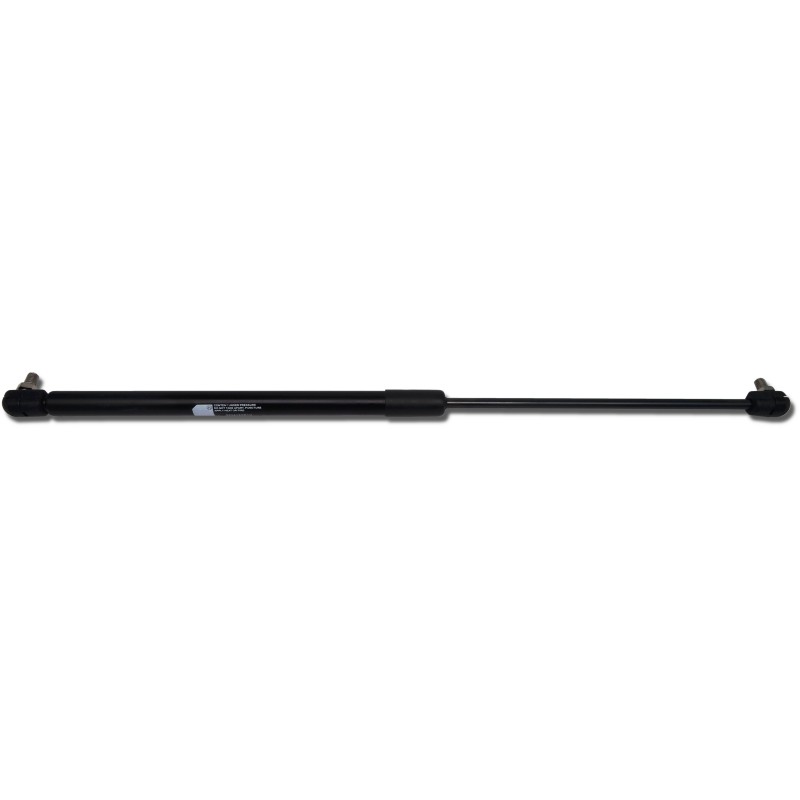

Gas actuator 550mm 220n rear window glass case

Rear window gas actuator for CASEKOD SKRAW-MET tractors: [3182]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with CASE

3230, 4210, 4220, 4230, 4240, 743, 743XL, 844, 844XL, 745S tractors , 745XL, 845, 845XL, 1055, 1055XL, 1255, 1255XL, 1455, 1455XL, 955, 955XL, 1056, 1056XL, 856, 856XL, 956, 956XL, 485, 485 X

Gas actuators are adapted, depending on the model, to work in : agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: rear windows of CASE tractors.

Technical specifications: Length of the folded actuator: 300 mm

Actuator length unfolded: 550 mm

Cylinder stroke: 250 mm

Piston diameter: 8 mm

Cylinder diameter: 19 mm

Diameter of mounting sockets: 10 mm

Temperature range: -20°C to +70°C

Dimensions (including folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source required.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation.

Wide application and versatility, from agricultural machinery to furniture.

Adapted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
