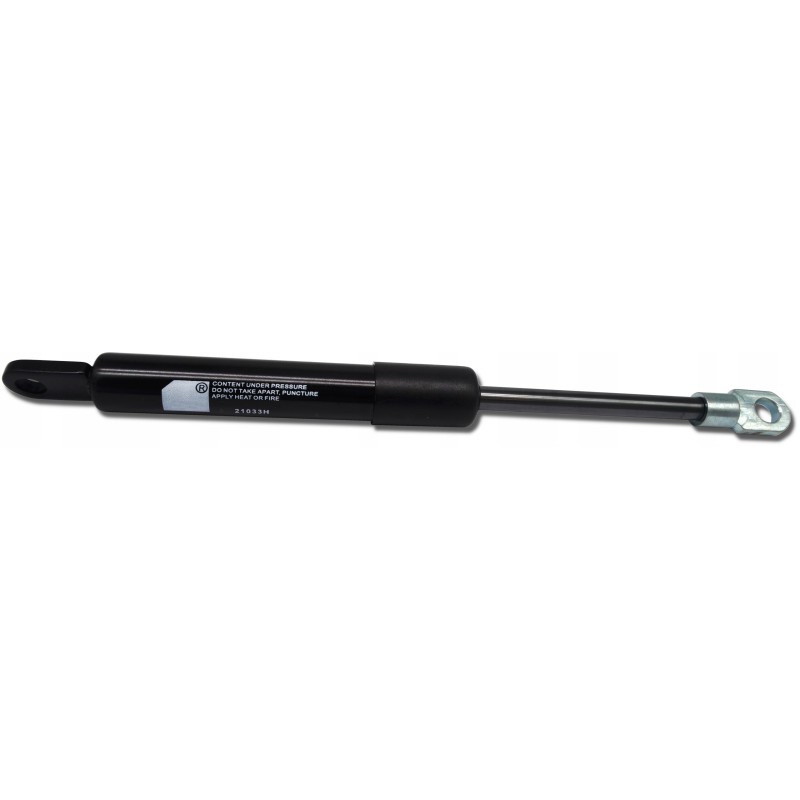

Telescope gas actuator 240mm 130n glass mf 3 mf4

Window gas actuator in URSUS tractors (MF)SKRAW-MET CODE: [3187]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with URSUS tractors in models:

2812 , 3512, 3514, 4512, 4514, 5312, 5314, 5714

Gas cylinders are adapted, depending on the model, to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: windows in URSUS (MF) tractors.

Technical specifications: Length of the folded actuator: 160mm

Extended cylinder length: 240mm

Culinator stroke: 80mm

Piston diameter: 8mm

Cylinder diameter: 18mm

Bore diameter: 8mm< p>

Temperature range: -20°C to +70°C

Dimensions (including the folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source.

Transmission of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick assembly.

Wide use and versatility, from agricultural machinery to furniture.

Adjusted to work at various temperatures.

The telescopes are individually designed for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
