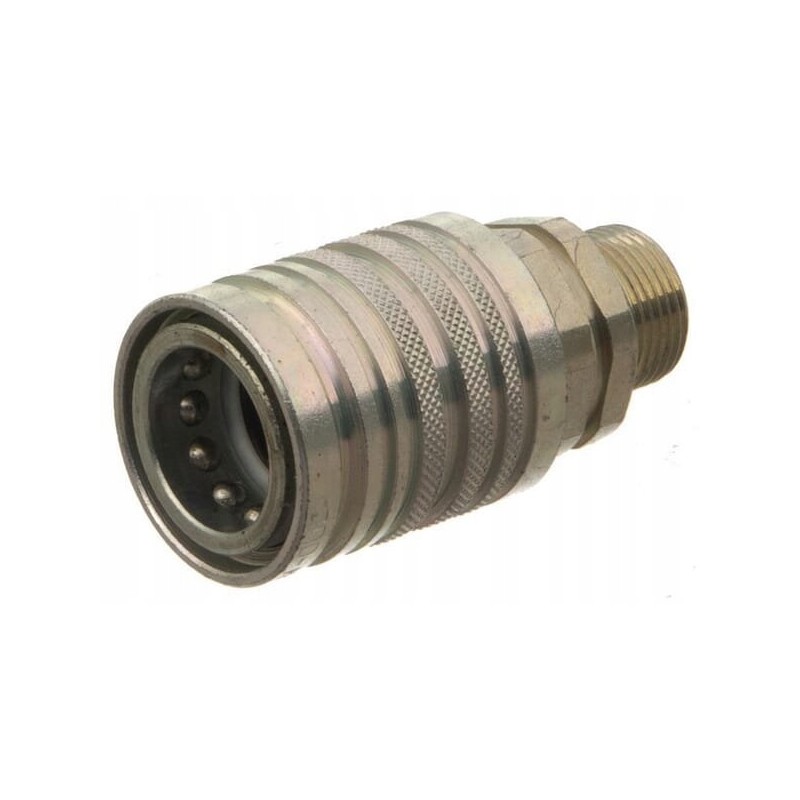

Quick connector socket skp f 1 2 external thread

Quick connector socket SKP-F 1/2' external thread M22x1.5 14S Parameters

Part number: SKPF12S22

Unit: piece

Manufacturer: DNP

Size (code): BG 3

Shape: Straight - 2 sides connector

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Male

Connector diameter no. 1: 20.5 mm

Outer diameter: 38 mm

Surface treatment: White passivated

Working pressure: 250 BAR

Max. working temperature: 100 °C

Min. working temperature: -30 °C

Connector type no. 2 : Thread

Connection No. 2 diameter: 14 mm

Connector No. 2 thread diameter: M22

Connector No. 2 thread pitch: 1.5 mm

Connector No. 2 thread type: Metric

Possibility of connection under pressure: No

ISO standard: 7241- 1-A

Total length: 73 mm

Interchangeable with: Faster CPV / Faster CNV / Faster ANV

Application

- Universal use

- Agricultural machinery

- Municipal technology

- Mineral oil based fluids Properties

- Standard agricultural connector

- Push & Pull principle

- Tear-off function

- With cut-off on both sides - Axial actuation of the locking sleeve in both directions (double acting)

Seal material

- Nitrile rubber [NBR]

- Teflon (PTFE)
