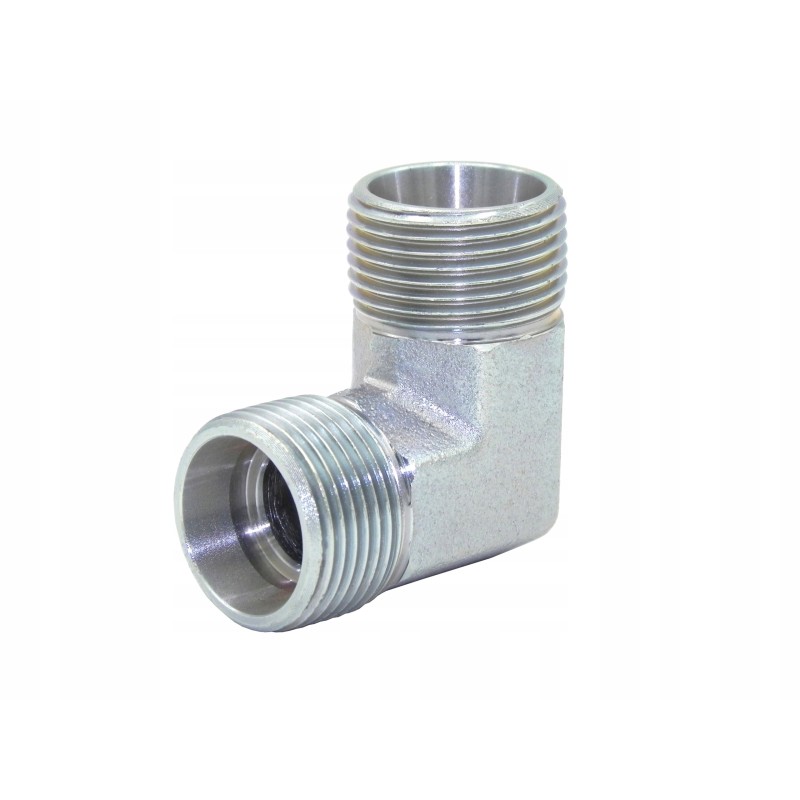

Hydraulic elbow connector 2x M36x2 25s

HYDRAULIC ELBOW CONNECTOR 2x M36x2 25SApplication:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connector, standardized light version with a conical clamping self-sealing when tightening. Designed to connect two hydraulic lines or to connect with other connectors with the same conical system.

It does not have rubber seals or places for a seal, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Technical data:

Thread on both sides: external metric 36x2 25S - heavy standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

steel weldable, galvanized, corrosion-resistant

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
