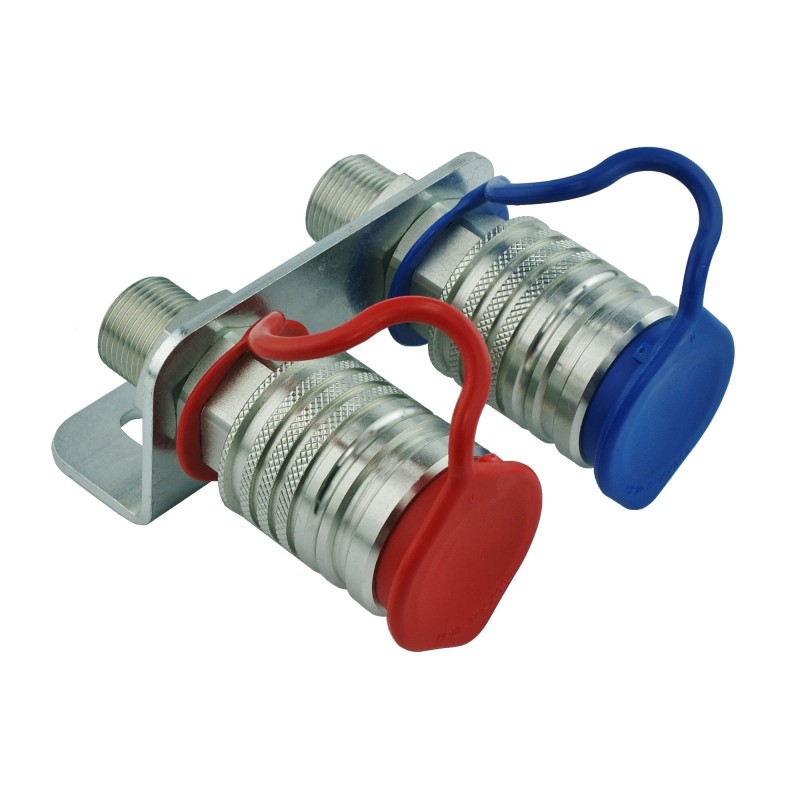

2x hydraulic quick connector socket 22 bracket

BOARD WITH TWO QUICK CONNECTORS Set composition:

2X EURO BULKET SOCKETS M22x1.52X DUST PLUGS 1X BOARD MOUNTING TWO QUICK CONNECTORS Production:

Original product of the Hydrolider brand, symbol: 1.60.55.911

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and the broadly understood industry.

The sheet can be screwed or welded, e.g. to the frame of the round.

Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks or dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

Thread diameter M22x1.5 measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Diameter internal [mm]: 20.2 - 20.6

Technical data of quick connectors:

Thread on the cable side: external metric 22x1.5

Thread type: long bulkhead, external

Nut included: YES

Clamping cone angle: 24° ( typical for the Polish standard)

Type of quick connector: euro bulkhead socket ISO standard

Material: weldable steel, galvanized, corrosion-resistant

Weight: 0.35kg

Liquid type: hydraulic oil

Technical data of the board:

Material:

steel sheet

Weldable material :

YES

Sheet thickness:

3mm

Important!

Agricola sets have been designed in such a way that they can be easily assembled by yourself. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent unassembled.
