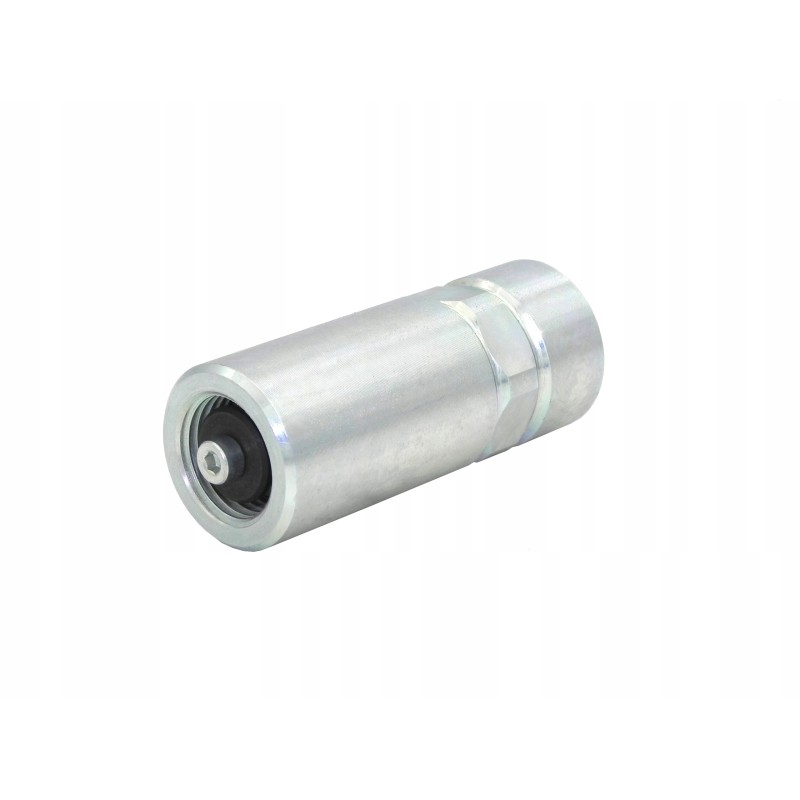

Vuba 1 2 safety valve for trailer

VUBA 1/2'' SAFETY VALVE FOR TRAILERS Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The valve is mainly mounted to various types of hydraulic cylinders, e.g. telescopic ones in loading trailers.

Protects hydraulic cylinders that are exposed to high pressure forces. It closes the oil flow in the event of a pipe rupture, protecting against loss of oil in the cylinder and in trailers against sudden lowering of the unloading box.

Principle of operation:

Immediately after a pipe burst, the momentum of the oil in the actuator causes the valve to block and stop the oil leak. . The actuator remains in the position it was in when the cable broke. The valve thus gives time to replace the damaged pipe and return to operation without major financial and environmental losses and damage.

Technical data:

Internal thread in the body on both sides [BSP]: 1/2''

Material: galvanized steel

Maximum pressure: 350 bar

Weight: 0.1 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
