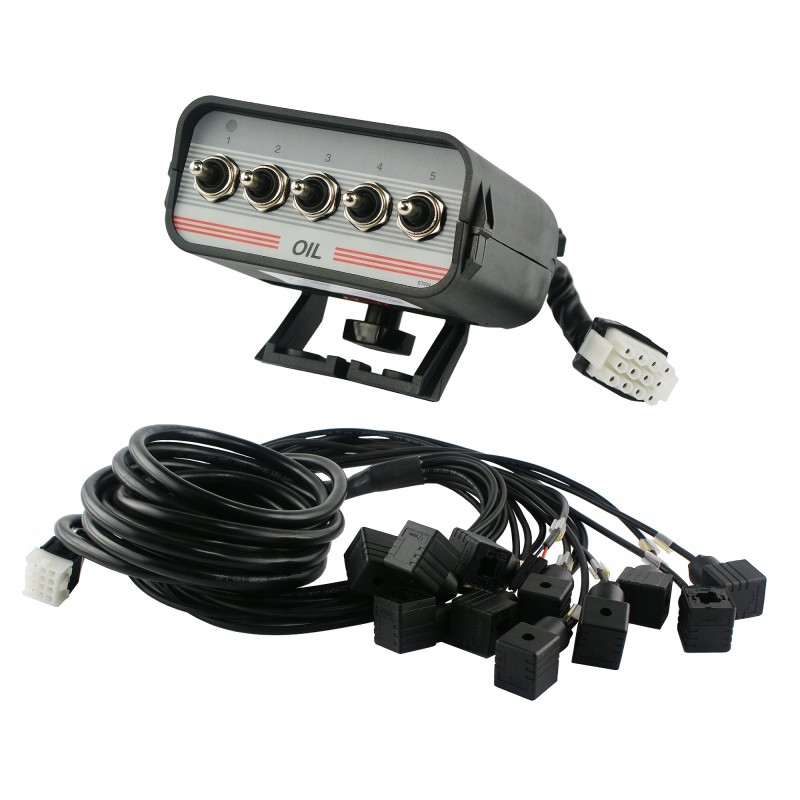

Box p50 s oil 5 24v salvarani control panel

HYDRAULIC DISTRIBUTOR CONTROL PANEL VOLTAGE: 24V, CONTROL: 5 SECTIONS Production:

Original product of the Salvarani brand, manufacturer's symbol: 1.10.62.015

Application:

It is widely used in hydraulic systems in agriculture, construction and industry.

Mainly for controlling hydraulic distributors.

General information:

All up-down switches with automatic centering (1- 0-2) without latch.

Each panel is sold complete with a 2m power cable with a plug, and a set of 5m cables with plugs for distributors. We also have sets of extension cables of 3m, 5m, 7m or 9m, which are available at other auctions.

When any switch is on, the signal is simultaneously transmitted to an additional pair of wires, which can be used to activate the warning signal. (horn, beacon) or the coil of the relief valve (CETOP type distributors), possibly for switching on the pump via a relay.

All panels offered are, by default, equipped with spring positioning buttons that automatically return to the neutral position. We also offer panels with buttons with snap positioning. The buttons can be freely configured within one panel. Prices of panels may change depending on the button configuration.

Integration:

Control, among others. such 5-section distributors (photo:)

Fits the distributors from our offer with 24V coils
