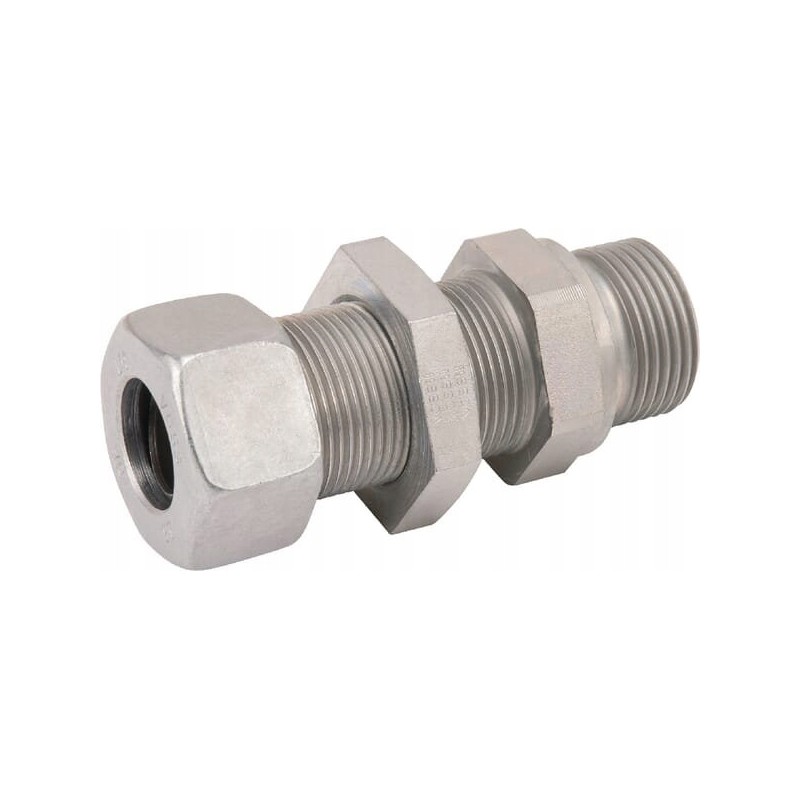

Straight bulkhead connector m18x1 5 12l r3 8

Straight bulkhead connector M18x1.5 12L R3/8' Parameters

Part number: GESV12LR38

Unit: Piece

Manufacturer: Voss

Features: - Optimum connection to the cutting ring and perfect operation

Shape: Straight - 2 sides connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection Diameter: 12 mm

Connector No. 1 Thread Diameter: M18

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: Metric

Wrench Size for Connector No. 1: 24.0 mm

Connector No. 2 Type: Thread

Connector Type No. 2 - male/female: Male

Thread diameter of connection no. 2: 3/8 inch

Number of turns per inch of thread of connection no. 2: 19

Thread type of connection no. 2: BSP

Pipe diameter: 12 mm

ISO standard: 228

Surface treatment: Galvanized

Series: 12L

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Application

- Hydraulic hose

- Hydraulic lines

Technical information

- galvanized without CR6

Benefits

- Low risk of leakage It consists of

- Adapter

- Locknut

- Cutting ring

- Connecting nut

DIN standard

- 2353

- 228

- 3852

- 2401
