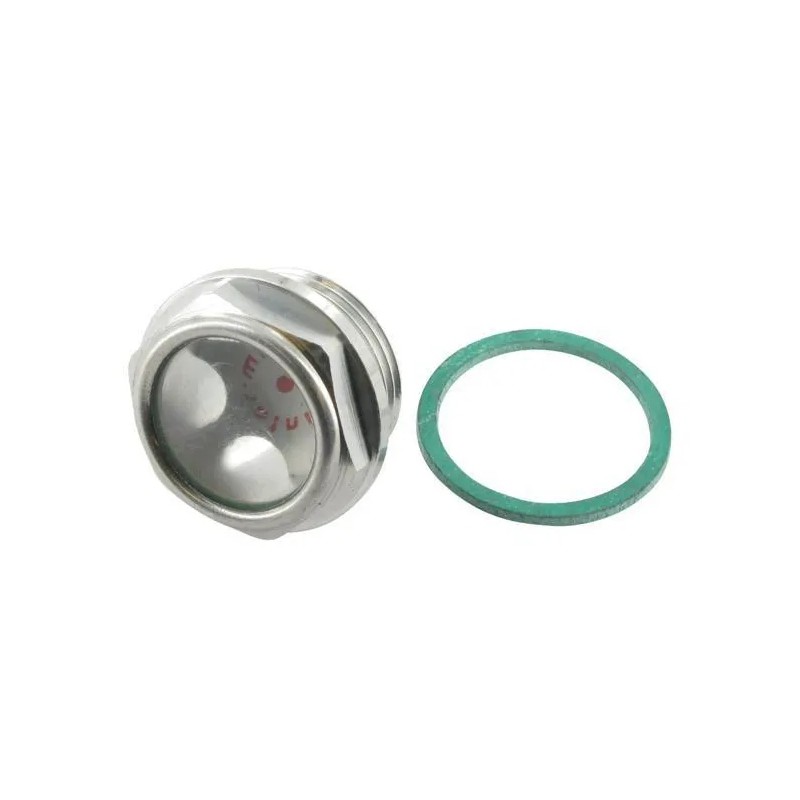

LCP06M Sight glass type LCP, thread 3/8' BSP (Alm) Features
Fluid level monitoring
NBR gasket
Mounting on the tank side
Technical information
Not suitable for alcohol
Not suitable for solvents
Type of glass
Plexiglass
Material
Aluminium
Gasket material
NBR
Pmax
Max. 2 bar BAR
Max. temp
90 °C
Floor strip
for screwing to the tank
Temperature range
(- 30)-(+100) °C
G Thickness
8 mm
B Thread
3/8' BSP BSP< p>
E Thread length
9 mm
Wrench size
22 mm
