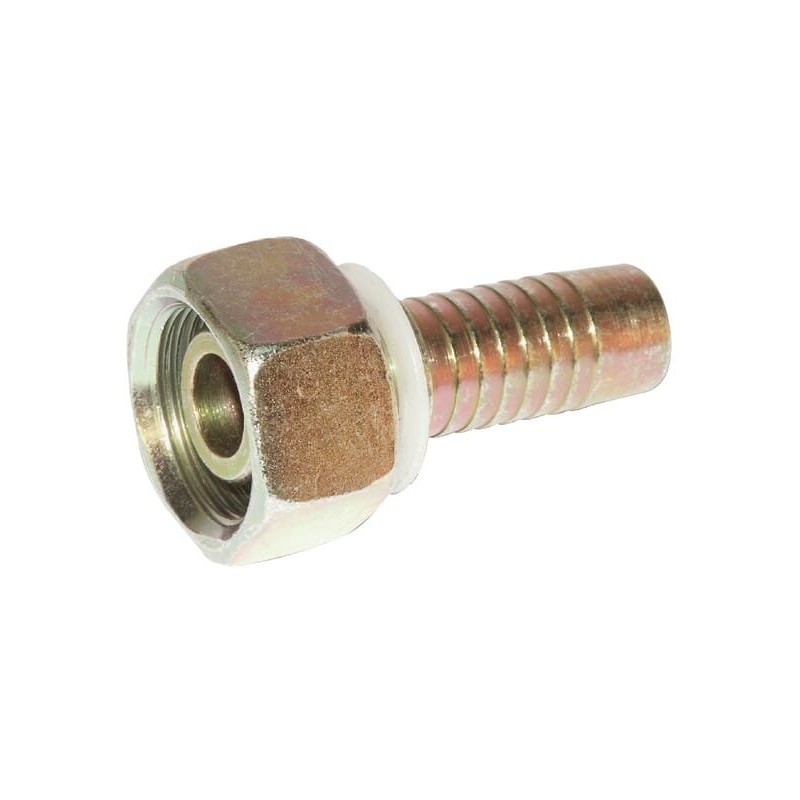

End cap dn16 m26x1 5 18l

Tip DN16-M26x1.5-18L Parameters

Part number: PGL1626

Unit: Piece

Manufacturer: Alfagomma

Cone angle: 60 °

Shape: Straight - 2 sides of connection

Connector type no. 1: Thread

Connector type no. 1 - male/female: Female

Type of connector no. 1 - code: DKM

Length of connector no. 1: 25 mm

Thread diameter of connector no. 1: M26

Thread pitch of connector no. 1: 1.50 mm

Wrench size for connector no. 1: 32.0 mm

Connector type no. 2: Hose barb

Connector type no. 2 - male/female : Male

Connection diameter no. 2: 16 mm

Material: Steel

Series: 18L

Connection: - Metric union nut< p>

Type: DKM

Surface treatment

- Galvanized

- White passivated

Application

- Screw connections with metric thread and 24° or 60° cone
