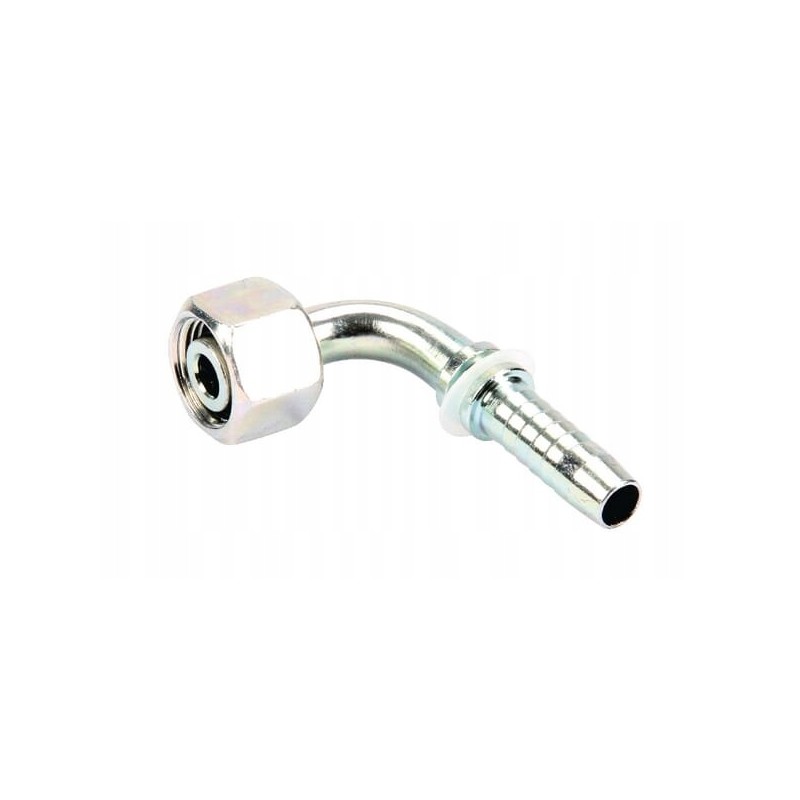

End cap dn13 m22x1 5 15l

Tip DN13-M22x1.5-15L Parameters

Part Number: PGLO132290H60

Unit: Piece

Manufacturer: Alfagomma

Cone Angle: 24 °

Shape: Elbow - 2 Sides Connection

Connector Type No. 1: Conical

Connector Type No. 1 - Male/Female: Female

Connector Type No. 1 - code: DKOL

Thread diameter of connector no. 1: M22

Thread pitch of connector no. 1: 1.50 mm

Wrench size for connector no. 1: 27.0 mm

Type of connector no. 2: Hose connector

Type of connector no. 2 - male/female: Male

Diameter of connection no. 2: 1/2 inch

Dimension from the axis of the connector to the bottom of the next connector: 39.8 mm

Angle: 90 °

Material: Steel

Series: 15L

Connection: xx

Type: DKOL

Dimension from the axis of joint no. 2 to the end of the next joint 60mm

Surface treatment

- Galvanized

- White passivated
