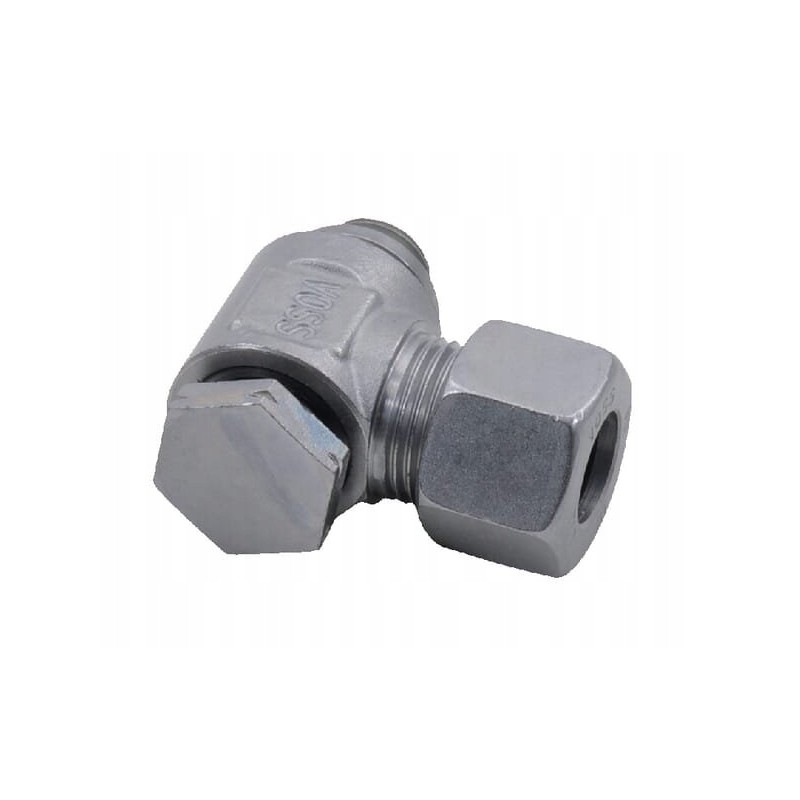

Angled threaded swivel fitting 15l r1 2

Angle swivel threaded fitting 15L R1/2 Parameters

Part number: RSWV15LR12

Unit: Piece

Manufacturer: Voss

EAN: 8719607052740

Shape: Elbow - 2 sides connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 15 mm

Connector No. 1 Thread Diameter: M22

Connector Thread Length: 14 mm

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: BSP

Wrench Size for Connector No. 1: 27.0 mm

Connector No. 2 Type: Banjo

Connector Type No. 2 - male/female: Male

Thread diameter of connection no. 2: 1/2 inch

Number of turns per inch of thread of connection no. 2: 14

Thread type of connection no. 2: BSP

Pipe diameter: 15 mm

ISO standard: 228

Angle : 90 °

Max working pressure: 400 BAR

Seal material: Metal

Series: L

Dimension from the axis of the joint to the end of the next joint 37mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
