Hydraulic hose thread M18x1 5 straight l 300mm
  • Hydraulic hose thread M18x1 5 straight l 300mm
  • Hydraulic hose thread M18x1 5 straight l 300mm
  • Hydraulic hose thread M18x1 5 straight l 300mm
  • Hydraulic hose thread M18x1 5 straight l 300mm

Hydraulic hose thread M18x1 5 straight l 300mm

15013591825789
Waryński
£24.50
Quantity
5 Items

Description

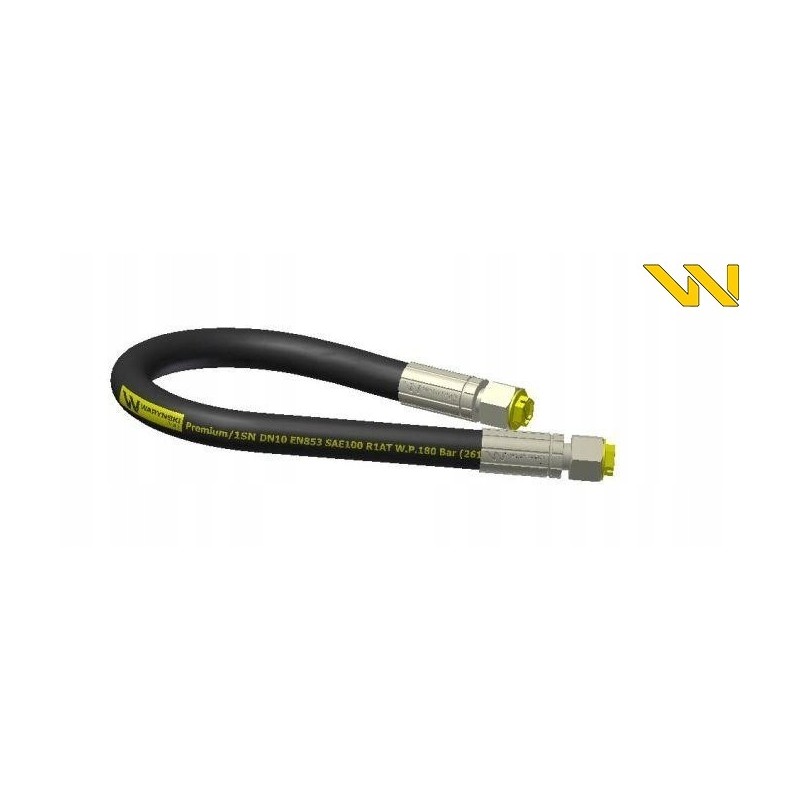

Hydraulic hose thread M18x1.5 straight L-300mm DN10-1SN (AA-10-300, P11P11) 18MPa Waryński

Description

Waryński hydraulic hose 180 bar (18MPa) - flexible, multi-functional forged hose reinforced with a single steel wire braid. Tested with pulsation pressure (medium: hydraulic oil). The Waryński hydraulic hose has protection in the form of yellow plugs on its crimped ends. Thanks to this, no contaminants get inside the lines, which could damage the working elements of the hydraulic system. All plugs are threaded and screwed onto the appropriate type of hydraulic hose end.

Specifications

Operating temperature: from -40 to +100 ˚C

Length: 300 mm

Fitting 2/ thread: Straight/nut M18x1.5

Fitting 1 /thread: Straight/nut M18x1.5

Article number: R. W-AA-10-300/1

Producer: WARYŃSKI

Product Details
Waryński
15013591825789
W-AA-10-300/1
5 Items
New

Data sheet

Manufacturer
Waryński
Part Number
W-AA-10-300/1
Product weight with unit packaging
0.25 kg
