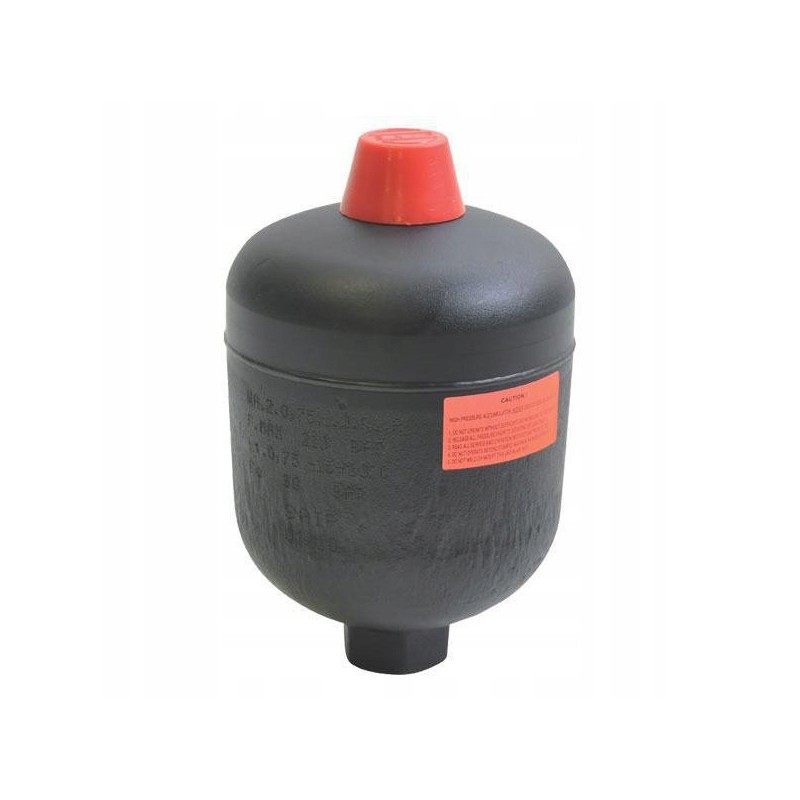

Hydraulic accumulator type WA 2l 250 20 bar

Name:

Hydraulic accumulator type WA 2L 250/20 Bar

Description:

Unit piece Specifications

Welded version with non-replaceable diaphragm < p>

Small external dimensions

Benefits

High quality at an attractive price

Low space requirement

Application

Agricultural, forestry, construction and municipal equipment

Shock absorber for front loader, shovel and travel mechanism

Spring shock absorption of the boom

Body fuse for plow

Leakage compensation

Properties

Complies with the Pressure Equipment Directive (DGRL)

The ratio between the working pressure and the pre-compression pressure does not may exceed the values of 8:1

Technical information

Note: Please read the operating instructions carefully before starting.

The pre-compression pressure can be a maximum of 90% of the working pressure

On request, we can create pre-compression pressure in the tank in our workshop

Only use nitrogen for filling, never oxygen or compressed air

The volume indicator shows the total volume (V0) of the tank

Our product specialists will be happy to help you choose the right tank

C 1/2 ' Content 2050 cm³ Filling pressure, standard 20 BAR Max. flow 80 l/min A 193 mm BØ B 153 mm D 24 mm E 16 mm Weight 6.5 kg Working pressure max. 250 BAR
