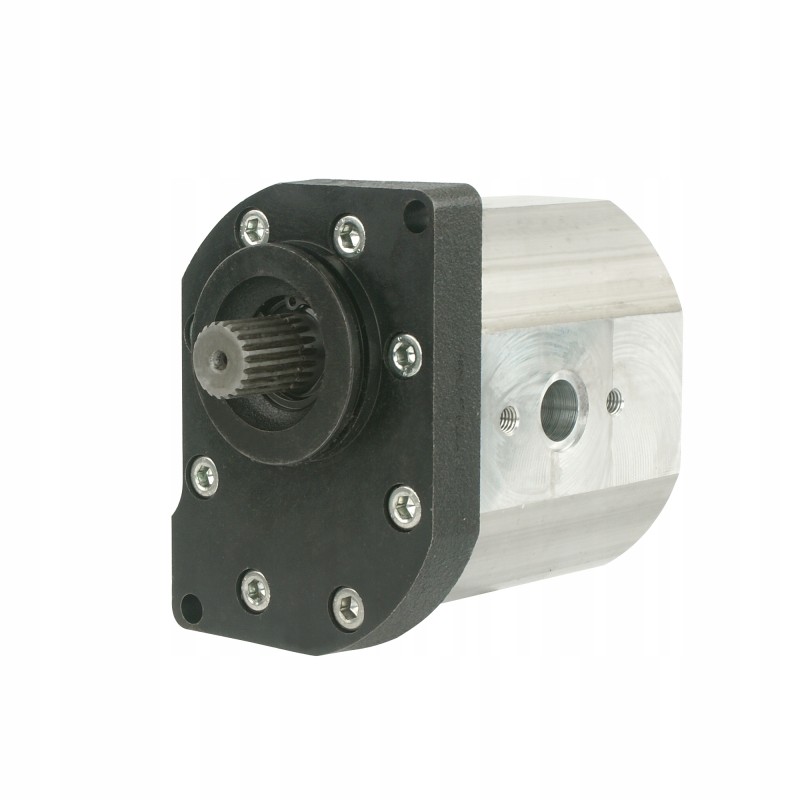

POLISH HYDRAULIC PUMP PZS-UD-25 FOR ZETORProduction:
Hylmet Polska, symbol: PZS-UD-25, UC 25.02V, UD 25.02V, UN 25.02V.
Application:
It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
Fits to Zetors: 7520, 7540, 8520T, 8540T, 8621, 8641, 9520 , 9520T, 9540, 9540T, 9621, 9641, 10520.
Technical data:
Capacity: 42L/min (at 1600 rpm)
Geometric volume : 26cm3/rev
Rotation direction: right
Rotation range: 800 - 2500 (rpm)
Operating parameters:
Keeping the pump operating at nominal parameters ensures the longest service life. Operation at maximum parameters is permissible but shortens the pump's life.
Nominal pressure: 16 MPa Maximum pressure: 20 MPa
