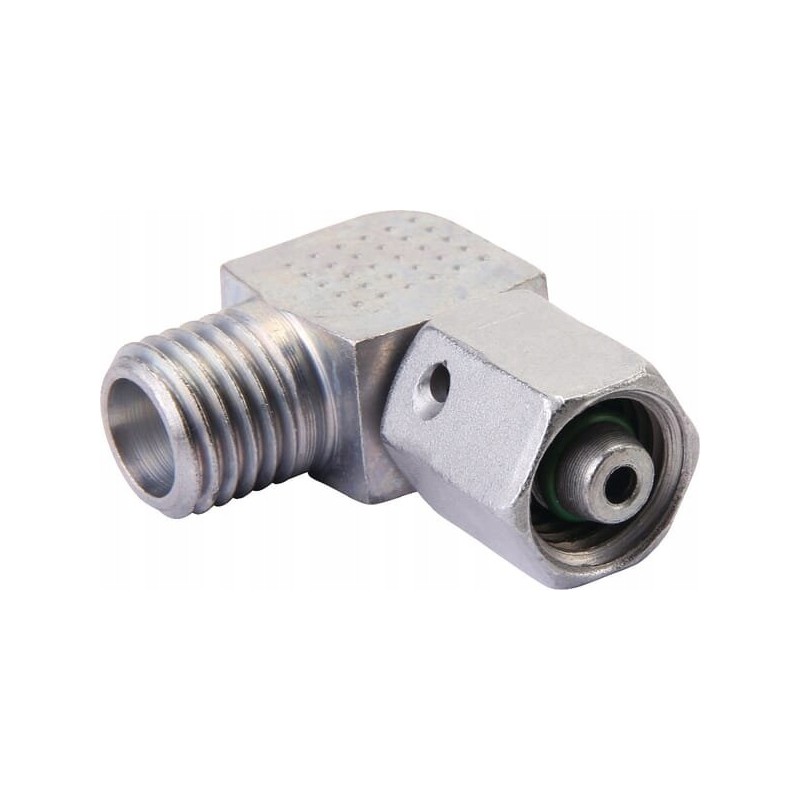

Adjustable elbow connector 8s ewsd8s voss

Adjustable elbow connector 8S Parameters

Part number: EWSD8S

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Elbow - 2 sides of connection

Connector type: Swivel nut

Connector type - male/female: Female

Connection diameter: 8 mm

Connector Thread Diameter: M16

Connector No. 1 Thread Pitch: 1.5 mm

Connector Thread Type: Metric

Connector Wrench Size: 17 mm

Connector No. 2 Type: Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Thread Diameter: M16

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2: 19 mm

Pipe Diameter: 8 mm

Length: 17 mm

Angle: 90 °

Working pressure max.: 800 BAR

Seal material on the pipe side: Viton

Series: 8S

Installation size 2 [L1]: 275 mm

L2 [L2]: 32 mm

Installation size 4 [S1]: 17 mm

Installation size [L]: 17 mm

Pressure: PN (nominal pressure) and Temperature acc. to DIN 2401. BAR

S2: 19 mm

L2: 32 mm

Mounting size 4: 17 mm

Mounting size: 17 mm

Thread M: M16x1.5

Spanner width [S2]: 19 mm

Specifications

- Pre-assembled O-ring - For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint 27.5mm

Dimension from the axis of joint no. 2 to the end of the next joint 24 mm

Internal diameter

- 5 mm

- 4 mm
