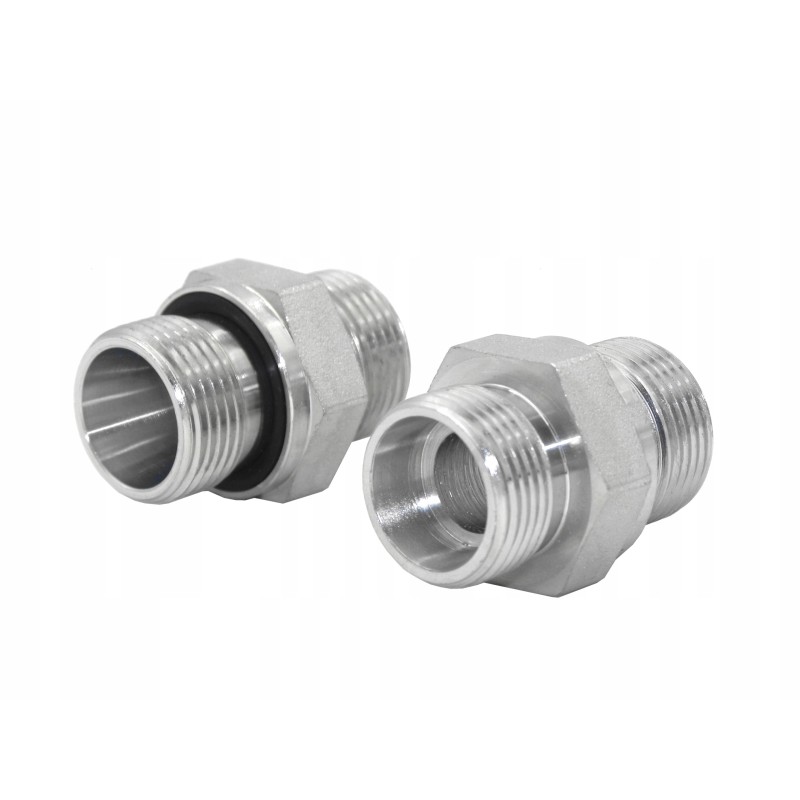

Hydraulic connection nipple m27x2 m36x2 28l

NYPEL HYDRAULIC CONNECTION M27x2 - M36x2 28LApplication:

It is widely used in hydraulic systems in agriculture, fruit growing, forestry, construction and broadly understood industry.

Connection with rubber seal, screwed into the body, e.g. pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic lines.

The side intended for screwing into the body has an ED seal, no additional seals are required in this place.

The other side is intended for screwing on a pipe, elbow or other connector. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is also not required here.

The connection is intended only for screwing into the body and is not suitable for connecting two wires. For this purpose, connectors are used, which can be purchased at our other auctions.

Technical data:

Thread on the body side: external metric 27x2

Thread on the other side: external metric 36x2 28L - light standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
