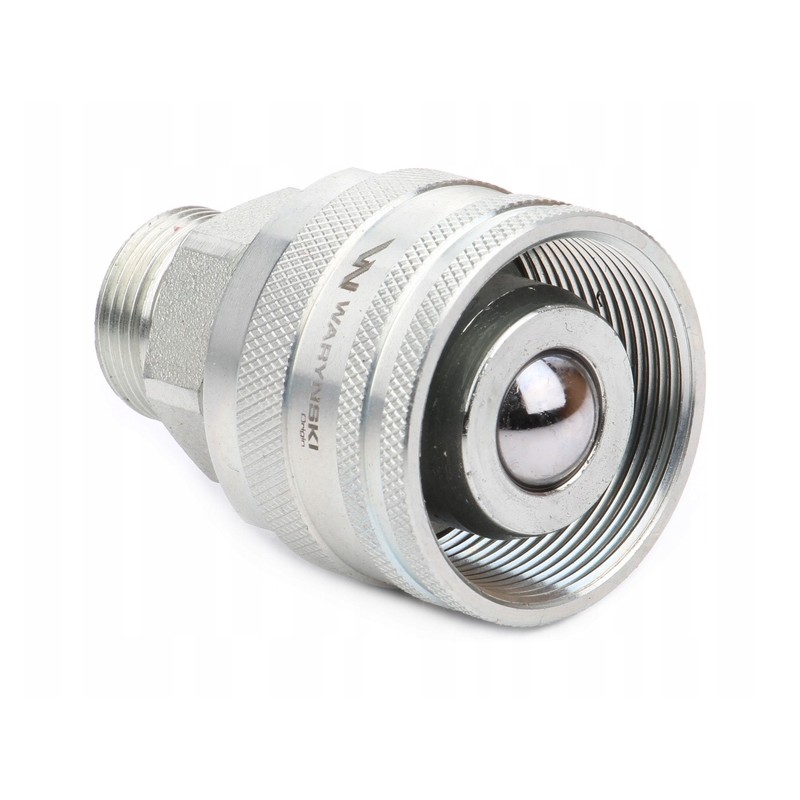

Valve plug m22x1 5 screwed 50490030 warynski

Valve plug M22x1.5, screwed 50490030 Waryński Valve plug M22x1.5, screwed 50490030 Waryński.

Waryński screwed agricultural quick connector - plug with external thread M22x1.5. The most popular old-type hydraulic valves with a very wide range of applications in agriculture. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions of agricultural machinery.

Screwed quick couplings (valves) used in agricultural machines. Due to the design of old-type connectors with a ball socket without seals, it is inevitable that trace amounts of oil will appear at the point of direct contact between the socket and the plug in the disconnected position. This phenomenon will be unnoticeable in the new type of connectors ISO 7241-A Waryński ISO 7241-A (EURO) Waryński and ISO 16028 (dry-cutting) Waryński.

Producer: Waryński Original

Product code: 44036743

Thread: External M22x1.5

Max operating pressure: 25.0 Mpa / 250 bar

Cone - thread: 15L (15 mm)

Operating temperature: from -25°C to +120°C
