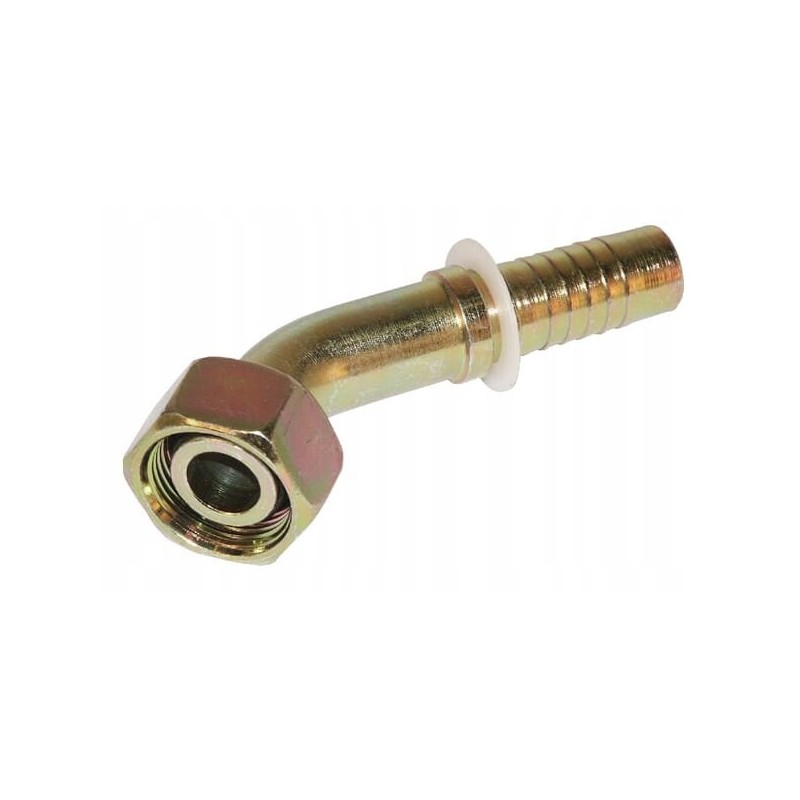

End cap dn05 m12x1 5 6l 45

End cap DN05-M12x1.5-6L-45° Parameters

Part Number: PGLO51245

Unit: Piece

Manufacturer: Unbranded

Cone Angle: 60°

Shape: Elbow - 2 Sides Connection

Connector Type #1: Conical

Connector Type #1 - Male/Female: Female

Connector Type #1 - code: DKOL

Connector no. 1 length: 36 mm

Connector no. 1 thread diameter: M12

Connector no. 1 thread pitch: 1.50 mm

Connector thread type: Metric

Wrench size for connector no. 1: 14.0 mm

Connector no. 2 type: Hose connector

Connector type no. 2 - male/female: Male

Diameter of connection no. 2: 3/16 inch

Angle: 45 °

Material: Steel

Series: 6L

Connection: xx

Type: DKOL

Dimension from the axis of joint no. 2 to the end of the next joint 14mm

Surface treatment

- Galvanized

- White passivated
