2-section set 80l for aurochs float 0p 2m lines

15013116274222
Other (SM)
£305.80
Quantity
5 Items

Description

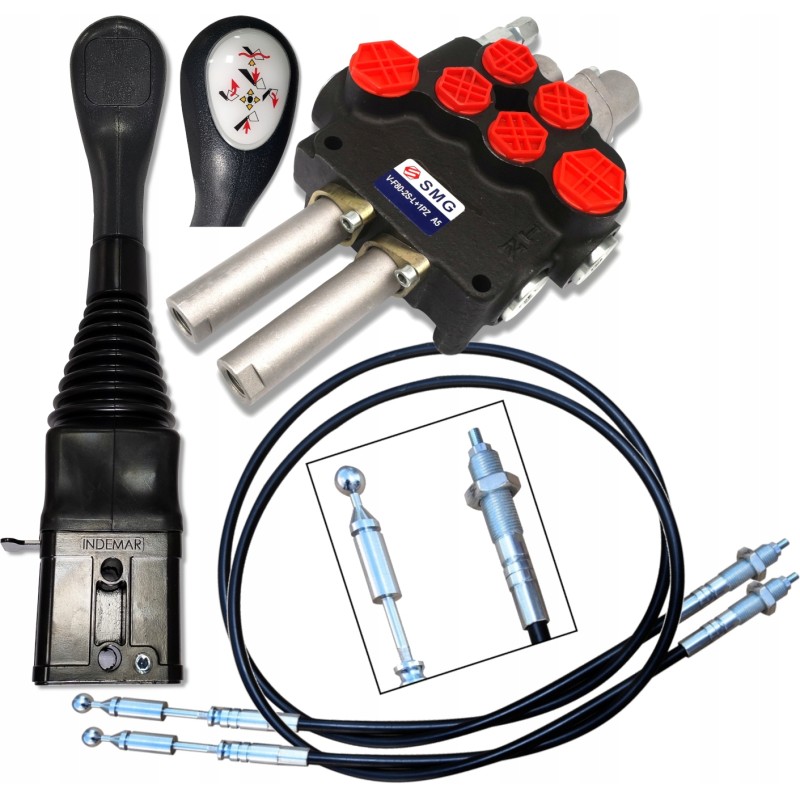

2-section hydraulic set 80L/min with floating section and latch for TURAKOD SKRAW MET: [8485] Manufacturer: SM-G (SKRAW MET GROUP) Set: ball joystick without button [0170]

2x 2m long cable [0203]

hydraulic splitter for 2-section cables, 80L/min - floating section + latch [1724]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket tilt).

The set has many advantages that influence dynamic, fast and safe control of the machine.

It can be used in agriculture, horticulture, forestry and construction. It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

2-SECTION HYDRAULIC DISTRIBUTOR 80L FOR CABLES + SECTION FLOATING WITH 1-WAY LATCH (K16+8) Manufacturer: SM-G (SKRAW MET GROUP) High-quality, monoblock distributor with a parallel system with a floating (absorbing) chamber. It is characterized by a compact structure, stable operation and high versatility.

It allows you to control from the cab (using cables and a joystick) two double-acting actuators or (after plugging one of the ports) single-acting actuators.

It is possible to connect in series to an existing system (pressure sleeve required).

Thanks to the latch with a latch, the distributor is ideal for machines and devices where there is no need to constantly keep your hand on the joystick.

Distributor (high quality), monoblock, with a parallel system and a floating (absorbing) chamber.

!ATTENTION! In a given manifold, the section with a latch is located in only one section with a FLOATING FUNCTION

Application: The manifold is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry or construction.

Universal distributor, used in various types of machines such as: Cyclops

Tury

Loaders

Plows

Forklifts and many others

Three-position slider (1 - 0 - 2) with a latch, i.e. it holds the position in the working position on its own

Neutral position 0 (joystick set in vertical - the cable is slack) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique forward position) the actuator piston rod extends.

Working position 2 ( joystick set in a diagonal position backwards) the actuator piston rod retracts.

Three-position slider (1 - 0 - 2) on a spring returns to the vertical position

Position 0 neutral (joystick set vertically - the cable is slack) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique forward position) the actuator piston rod extends.

Working position 2 (joystick set in an oblique position backwards), the actuator piston rod retracts.

Connection: Feed (P) BSP 3/4''

Return (T) BSP 3/4''

Output to BSP 1/2'' sections

BSP 3/4' connection

Technical specifications: Oil flow: 0 - 80 l/min

Maximum working pressure: 300 bar

Permissible ambient temperature: -40℃ to +60℃

Permissible oil temperature: -15℃ to +80℃

Equipped with a safety valve.

Joystick without a buttonAdjusted for mechanical control of frame lifting and shovel inclination.

A solid joystick enabling mechanical control of two-way hydraulic control valves of TURA (loader) using two cables .

Allows remote control (from the cab) of distributors that are located outside the cab.

Application: Dedicated to controlling TURA 1, 2, 3 in tractors such as:

URSUS

ZETOR

MF and derivatives.

Perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in various types of machines, i.e. agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, machines industrial and others.

Easy to install.Technical specifications: Cable opening Φ14 mm

Lock lever

M8 self-locking pin for cable mounting

Operating temperature: from -30°C / to +80°C

Material:ergonomic, hardened plastic handle

Aluminum alloy base

The joystick has a safety mechanism (2) that allows you to block the movements of the joystick head to prevent accidental activation: Locked joystick headUnlocked joystick headCable to control the ball-type distributor 2m POLISH product SUPER DURABLEThe cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick/lever.

It can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Ends: The end of the cable on the joystick side ends with a ball with a diameter of 14mm

End cables from the distributor side, cable body thread M16x1.5, slider thread M6x1.6

Product Details
Other (SM)
15013116274222
8485.0P.2X2M40
5 Items
New

Data sheet

Manufacturer
Other (SM)
Part Number
8485.0P.2X2M40
