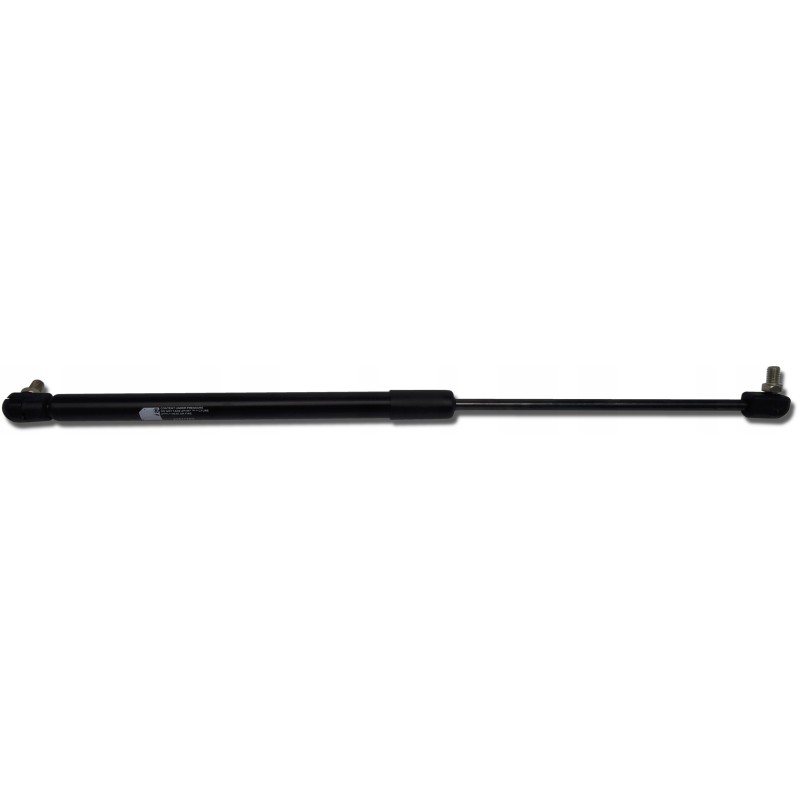

Gas motor 520mm 370n rear window glass same

Rear window gas actuator for SAMEKOD SKRAW-MET tractors: [3202]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with SAME tractors

Galaxy170

Laser90, 110, 110, 125, 130, 150

Gas cylinders are adapted, depending on the model, to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: rear window of SAME tractors.

Technical specifications: Length of the folded actuator: 305mm

Length of the unfolded actuator: 520 mm

Cylinder stroke: 215mm

Piston diameter: 8mm

Cylinder diameter: 18mm

Mounting pin thread: M8x1.25< p>

Temperature range: -20°C to +70°C

Dimensions (including the folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source.

Transmission of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick assembly.

Wide use and versatility, from agricultural machinery to furniture.

Adjusted to work at various temperatures.

The telescopes are individually designed for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
