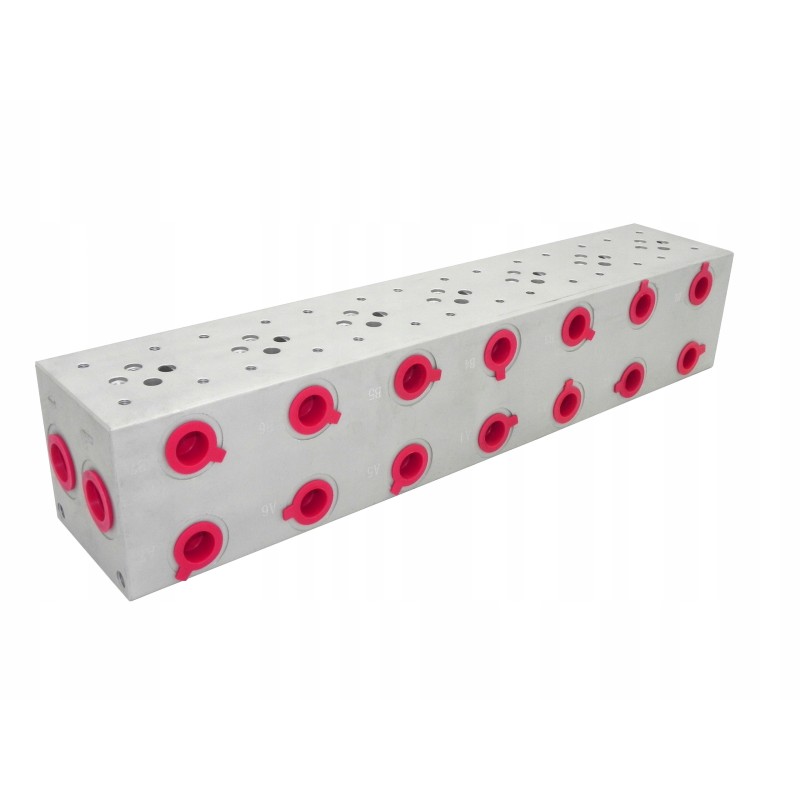

Block plate distributor cetop solenoid valve 7 sections

CONNECTION PLATE, 7-SECTION VALVE BLOCK OF CETOP 3 NG6 DISTRIBUTOR Application:

It is widely used in hydraulic systems in construction, agriculture and industry.

Connection plates or valve blocks are part of complete hydraulic distributors of the type CETOP. They act as a base for screwing CETOP 3 NG6 type slide distributors.

Plate-mounted slide distributors are used to control the direction of oil flow, resulting in a specific movement or stopping of the receiver, e.g. an actuator or a hydraulic motor.

The plate allows for the installation of seven spool valves from the CETOP 3 NG6 series.

Technical data:

- The plate is made of aluminum alloy, has an overflow valve and a port for screwing in a pressure gauge.

- Connections: P and T thread 1/2'

- Outlets for receivers thread 3/8'

- Maximum flow: 50L/min

Pressure range:

Maximum operating pressure: 200 bar

Temperature range and oil type:

Permissible ambient temperature: -40 C to + 60 C

Permissible oil temperature: -15 C to +80 C

Recommended hydraulic oil based on mineral oil, e.g. HL 32 or HL 46

Recommended filtration oil level of 10 - 15 µ

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
