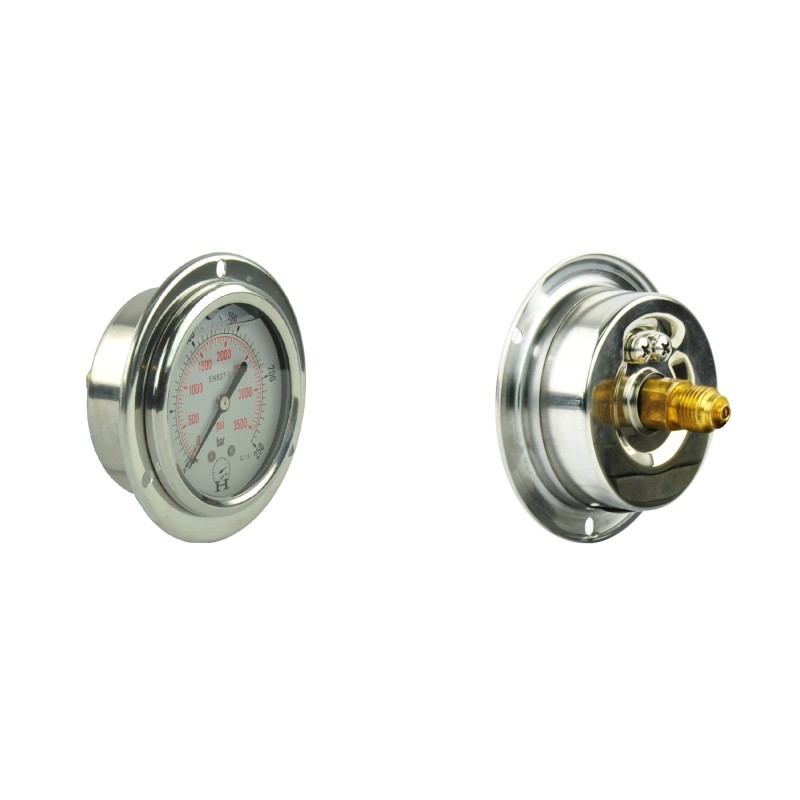

Glic pressure gauge 63mm 0 250bar kt 1 4 hydrolider

PRESSURE MEASURING MANOMETER WITH REAR CONNECTION AND MOUNTING PRESSURE MEASURING RANGE: 0-250 B CLOCK DIAMETER: 63mm, CONNECTION THREAD: G 1/4' Production:

Original product of the Hydrolider brand, symbol: 1.52.01.115

Application:

Widely used, mainly in systems hydraulics in agriculture, construction and industry. Designed to measure the pressure of liquids and gases (non-reactive with copper alloys) in closed systems in internal conditions.

Designed to be mounted in the opening of the desktop or dashboard.

Technical data:

Pressure measurement range: 0-250 Bar

Outer diameter of the clock: 63mm

Clock diameter with collar: 84 mm

Recommended hole in the desktop: 65 mm

Clock connection port [BSP]: 1/4'

Steel casing, glass viewfinder

Operating temperature [°C]: -10 to +50

Accuracy class: 1.6

Shock-resistant - filled with glycerine inside to increase measurement precision, which stabilizes the indicator during shocks and protects against damage.

Acid-resistant surface - acid-resistant steel casing ensures the ability to work in difficult, chemical conditions in industry, agriculture and horticulture.
