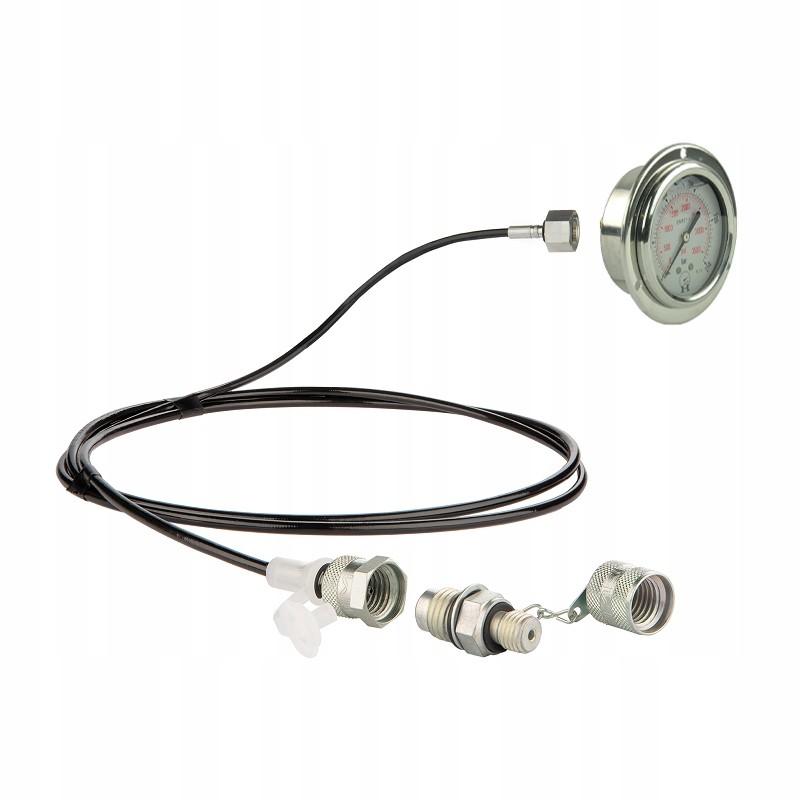

Service kit, 250bar pressure gauge, 1m cable 1 4

MEASURING SET WITH 250 BAR MANOMETER WITH 1M CABLE AND SERVICE CONNECTOR ED G1/4'Production:

Original product of the Hydrolider brand, symbol: 1.52.00.804.14.250

Application:

Set intended for measuring oil pressure in closed hydraulic systems where conditions are generating hydraulic pressure.

A pressure gauge with a collar designed for installation in the opening of a desk or service box.

The connection has a threaded cap with a chain ensuring protection against weather conditions. Seals the connection when the cable with the measuring set is disconnected. This solution allows the connection to be left permanently, even when the machine is under pressure and the measuring set is disconnected.

Technical data:

Thread connecting the pressure gauge with the cable: G1/4' with a front seal

Thread connecting the cable with the service connection: M16x2 (system MINIPRESS)

Connection thread on the side of the device body: external thread G1/4' with ED seal

Clock diameter: 63 mm

Clock diameter with flange: 84 mm

Recommended hole in the desktop: 65 mm

Measuring range: 0 - 250 bar

Accuracy class: 1.6

Filling: glycerin

Cable connection location: on the back

Cable length: 1000 mm

Cable external / internal diameter: 5 mm / 2.2 mm

Minimum bending radius: 20 mm

Maximum pressure: 630 bar

Burst pressure: 1890 bar

Operating temperature: -40°C to +100°C

Core material: thermoplastic polyester

Braid material: aramid fiber (Kevlar)

Cover material: abrasion-resistant polyurethane

Connection material: stainless steel
