M10x1 pressure measurement cable, 250bar manometer

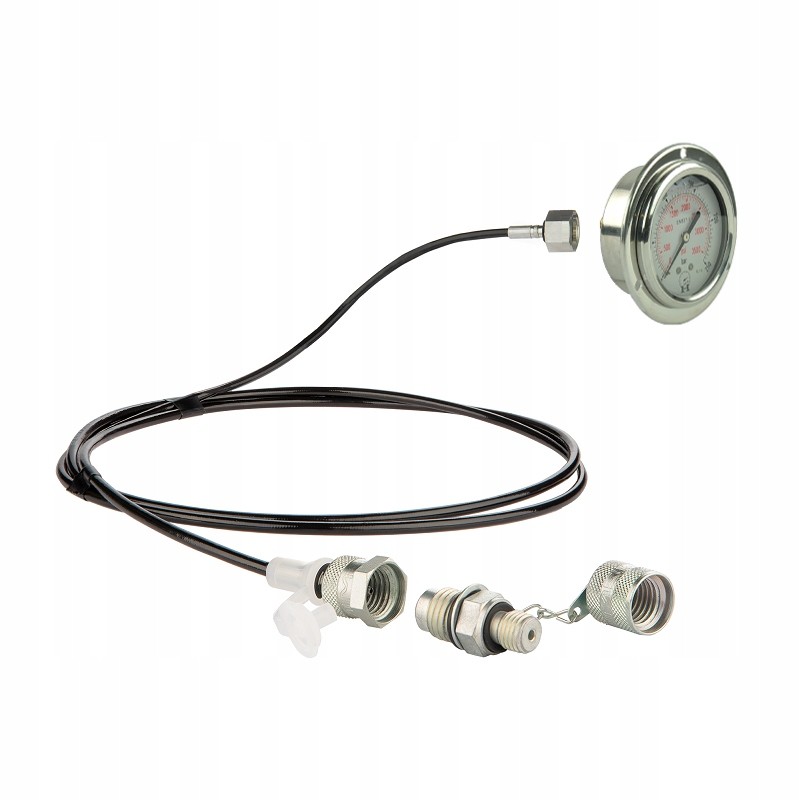

MEASURING SET WITH 250 BAR MANOMETER WITH 1M CABLE AND SERVICE CONNECTOR ED M10X1 Production:

Original product of the Hydrolider brand, symbol: 1.52.00.804.11.250

Application:

Set intended for measuring oil pressure in closed hydraulic systems in which there are conditions for developing hydraulic pressure.

Pressure gauge with a flange designed for installation in the opening of a desk or service box.

The connection has a threaded cap with a chain providing protection against weather conditions. Seals the connection when the cable with the measuring set is disconnected. This solution allows the connection to be left permanently, even when the machine is under pressure and the measuring set is disconnected.

Technical data:

Thread connecting the pressure gauge with the cable: G1/4' with a front seal

Thread connecting the cable with the service connection: M16x2 (system MINIPRESS)

Connection thread on the device body side: external thread M10x1 with ED seal

Clock diameter: 63 mm

Clock diameter with collar: 84 mm

Recommended hole in the desktop: 65 mm

Measuring range: 0 - 250 bar

Accuracy class: 1.6

Filling: glycerine

Cable connection point: at the back

Cable length: 1000 mm

Cable external / internal diameter: 5 mm / 2.2 mm

Minimum bending radius: 20 mm

Maximum pressure: 630 bar

Bursting pressure : 1890 bar

Operating temperature: -40°C to +100°C

Core material: thermoplastic polyester

Braid material: aramid fiber (Kevlar)

Cover material: abrasion-resistant polyurethane

Connection material: stainless steel
