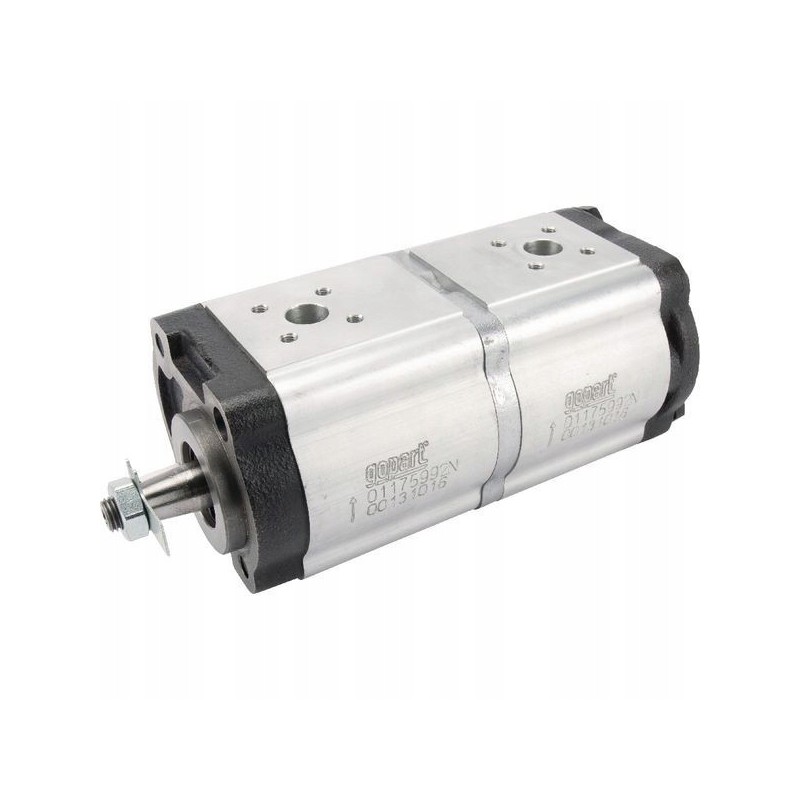

01175992n hydraulic pump underwater 16 14 ccm

Hydraulic pump double 16+14ccm INDEX: 01175992N

Number of mounting holes: 4

Max working pressure: 300BAR

Max rotational speed: 3000 rpm

Seal type: Standard

Housing length: 196.3mm

Minimum rotational speed: 650 rpm

Maximum working pressure: 280BAR

Capacity: 16cm³/rev

Continuous working pressure max: 250BAR

Connection position: Side

Shaft type: Cone

Information additional: Fits Deutz agricultural tractors Series: DX DX110, DX110A, DX120, DX120A, DX85, DX85A, DX90, DX90A, Series: DX6 DX6.10, DX6.30, DX6.50

Main connection size - code: 2GB12

Diameter of the pressure connection screw spacing: 35mm

Shaft cone size - code: 1:5

Preferred direction of rotation: In the direction opposite to the movement clockwise

Flange type - standard: German

Sectional connection bolt spacing diameter: 40mm

Pressure connection size - code: 1GB12

Spacing from the connection to the flange: 45mm

Shaft thread diameter: M12

Shaft thread pitch: 1.5mm
