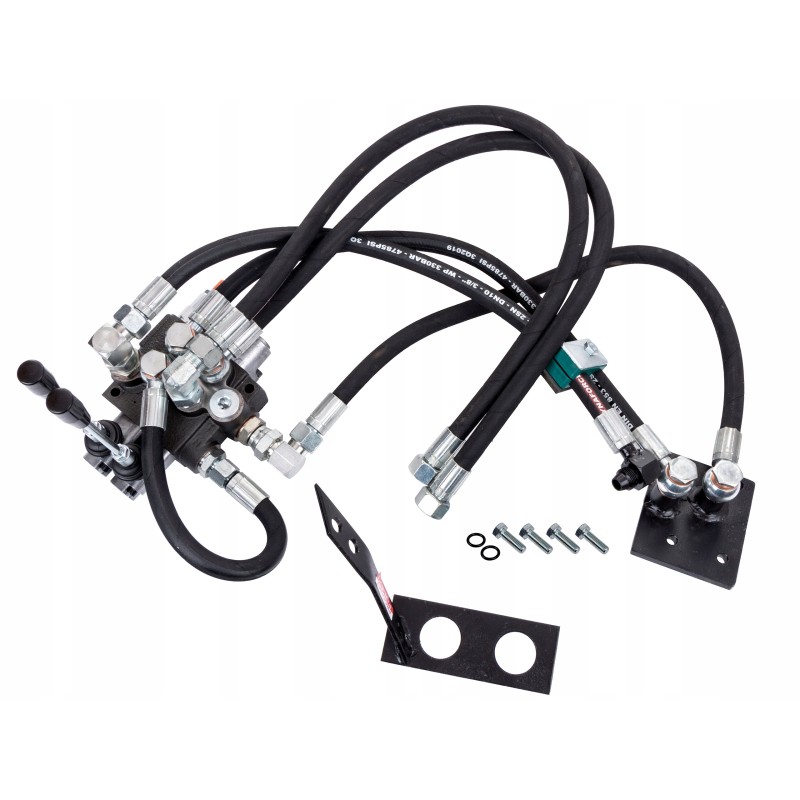

Manifold c 330 2 section distributor kit

C-330 external distributor kit, 2-section, flexible hoses MIZAR number: 58995

C-330 external distributor kit, 2-section, flexible hoses The kit is designed to replace the traditional lift distributor under the seat with a two-section distributor.

The distributor is mounted on the fender, which makes it in a more accessible and convenient place, compared to the one mounted under the seat.

It allows you to control the lift and external hydraulics.

This solution is more economical, simpler, easier to use and repair.

Set dedicated to Ursus C-330 tractors

The set includes:

- two-section distributor,

- distributor adapter,< p>

- hydraulic hoses,

- hydraulic connectors,

- seals,

- screws

To facilitate installation on the machine, the set is pre-assembled. After installation, make sure that all connections are well tightened.

The distributor configuration has been prepared to support the factory lift actuator (single-acting actuator), therefore one of the manifold sections has a so-called 'bypass' i.e. a bypass enabling lowering the lift. The second section is dedicated to operating external hydraulics, e.g. the hydraulic central connector.

This version of the distributor does not have the so-called free descent, if the lever is set in the neutral position, the lift is rigidly blocked.

MIZAR number: 58995
