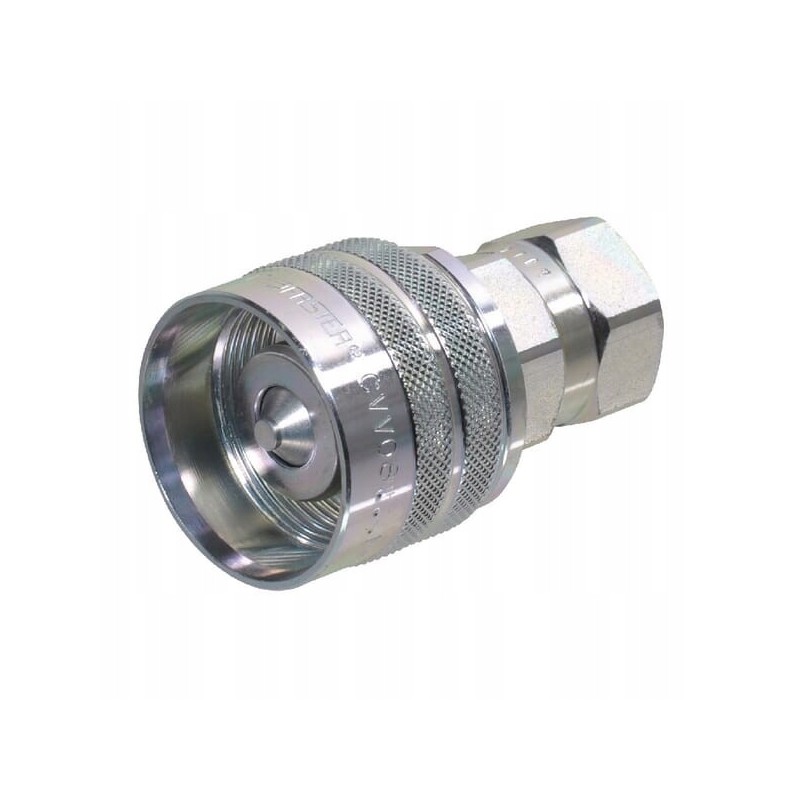

Quick connector faster cvv24114gasmv

Quick connector INDEX: CVV24114GASMV

Length: 5.14 inch

Material: Steel

Technical information: - The connector should be screwed on until it stops

Specifications : - Heavy Duty version - Viton seals

Benefits: - Durability even under heavy loads - Suitable for high operating temperatures

Properties: - Designed for high dynamic loads - With ball valve - High availability of equivalents from other manufacturers on the European market

Valve type: Mushroom valve

Application: - Universal use - Construction machinery - Hydraulic hammers - Agricultural machinery - Mineral oil-based fluids

Size: 37.5mm

Outside diameter: 3.15inch

ISO standard: 14541

Connection diameter: 80mm

Surface treatment: Chromed

Seal material: FKM

Nitrile rubber [NBR]

Weight: 1928g

Operating pressure: 270BAR< p>

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: Yes

Max operating temperature: 200°C

Operating temperature min: -20°C

Type of quick connector lock: Thread

Connection method: Screwed

Connection diameter no. 2: 80mm

Wrench size for connector no. 2: 75mm

Length of connector no. 2: 130.5mm

Disconnection method: Screwed

Thread diameter of connector no. 2: 1- 1/4 inch

Connection thread type no. 2: BSPP

Flow at 2 bar pressure: 450l/min

OE reference number: CVV24 114GAS MV

Connector #1 Type - Male/Female: Male

Connector #1 Key Size: 65mm
