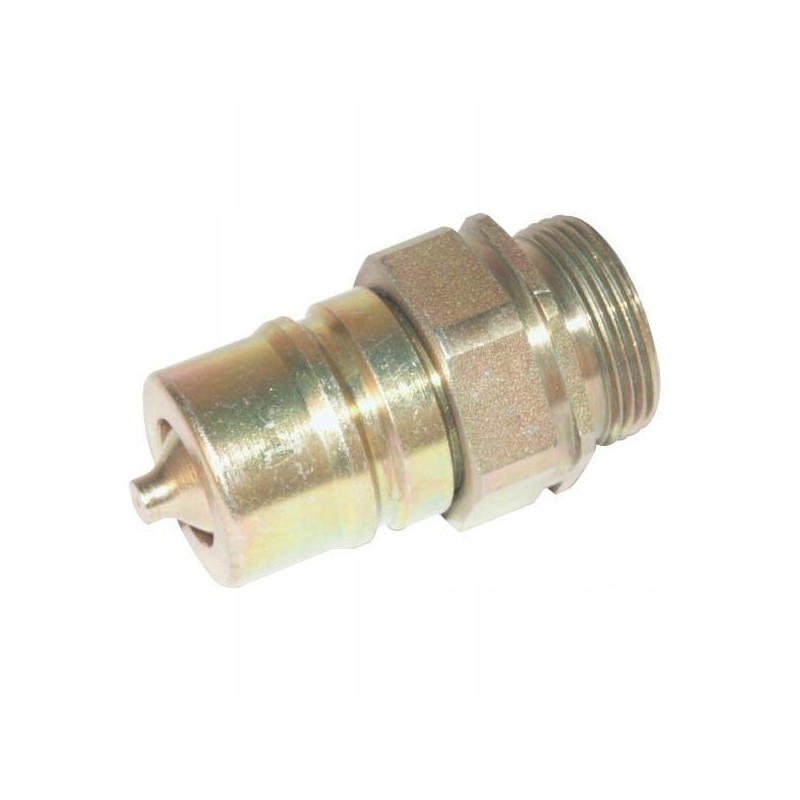

Skpm12l16 quick connector iso 12 5 m16x1 5 10l

ISO 12.5 M16X1.5-10L quick connector - plug INDEX: SKPM12L16

Features: - Standard agricultural connector - Push & Pull principle - Tear-off function

Shape: Straight - 2 sides of the connection

Application: - Universal use - Agricultural machinery - Municipal technology - Mineral oil-based fluids

Outer diameter: 38mm

ISO standard: 7241-1-A

Series: 10L

Connection diameter: 20.6mm

Surface treatment: White passivated

Total length: 58mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Working pressure: 250BAR

Connector type no. 2 - male/female: Male

Possibility of connection under pressure: No

Max operating temperature: 100°C

Min operating temperature: -30°C

Connection type: plug

Connection no. 2 diameter: 10mm

Connector no. 2 thread pitch: 1.5mm

Connector no. 2 type: Thread

Connection no. 2 thread diameter: M16

Size (code): BG 3

Connection no. 2 thread type: Metric

Connection type no. 1: Quick connector

Connector type no. 1 - male/female: Male
