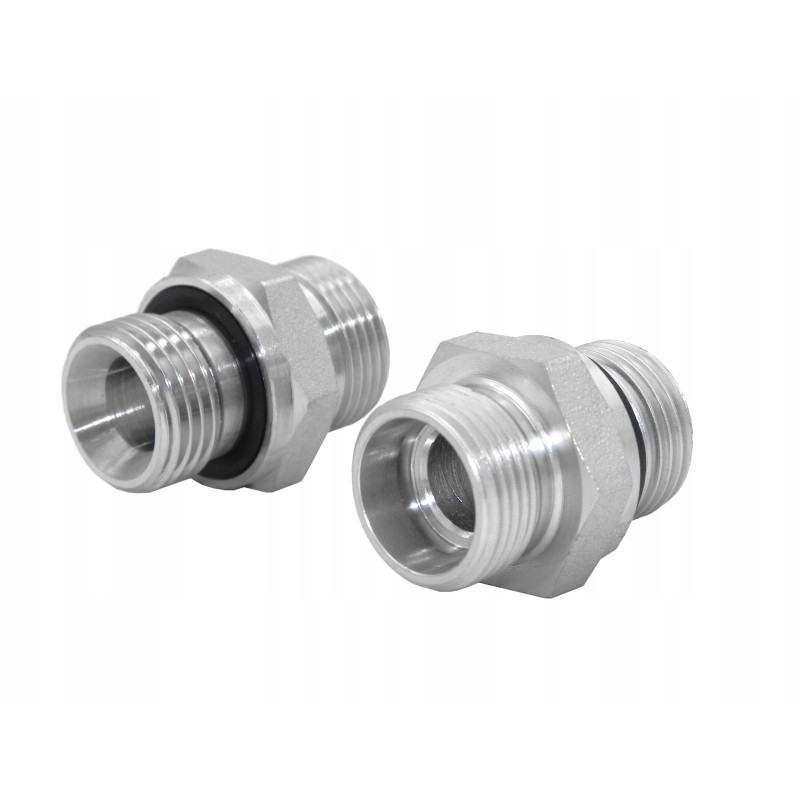

Hydraulic connection nipple BSP 1 2 m27x2 18l

HYDRAULIC CONNECTION NYPEL BSP 1/2'' - M27x2 18LApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection with rubber seal , screwed into the body of e.g. a pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic lines.

The side intended for screwing into the body has an ED seal, no additional seals are required in this place.< p>

The other side is intended for screwing on a pipe, elbow or other fitting. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is also not required here.

The connection is intended only for screwing into the body and is not suitable for connecting two wires. This is done using connectors that can be purchased at our other auctions.

Technical data:

Thread on the body side: external metric BSP 1/2''

Thread on the other side: external metric 27x2 18L - light standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
