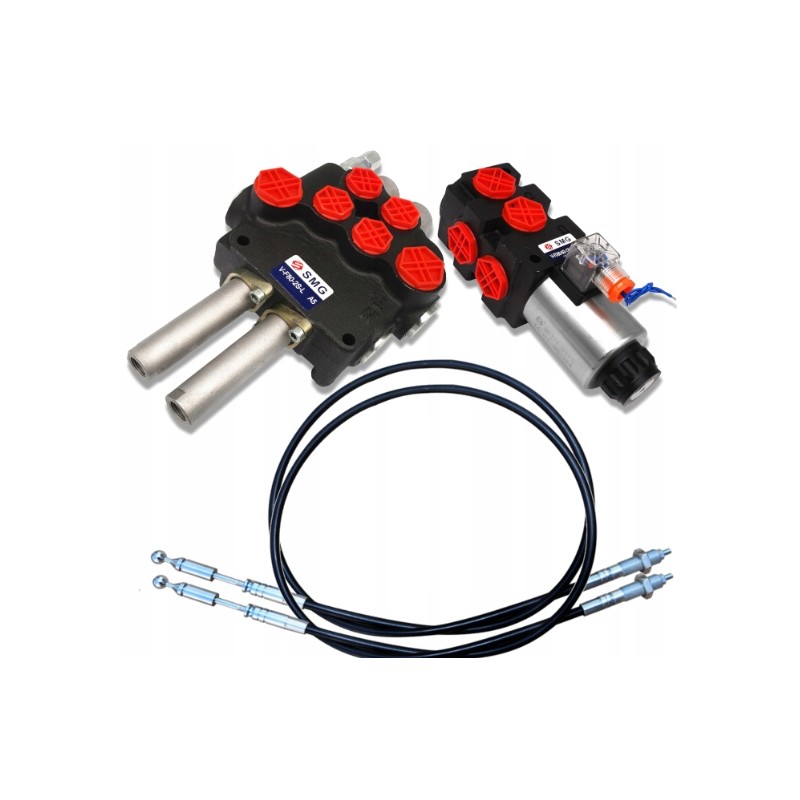

3-section set, 80l, for round distributor, latch

3-section hydraulic set 80L/min with a floating section and a latch for TURAPufacturer: SM-G (SKRAW MET GROUP)SKRAW MET CODE: [8524]Set content: 2x 1.5m long cable [0202]

2-section hydraulic distributor 80L/min - floating section + latch [1724]

solenoid valve - divider 6/2 12V 90L/min [1962]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket tilt) and one additional section after pressing a button.

The set has many advantages that influence dynamic, fast and safe control of the machine.

It can be used in agriculture, horticulture, forestry and construction. It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

2-SECTION HYDRAULIC DISTRIBUTOR 80L FOR CABLES + SECTION FLOATING WITH 1-WAY LATCH (K16+8) Manufacturer: SM-G (SKRAW MET GROUP) High-quality, monoblock distributor with a parallel system with a floating (absorbing) chamber. It is characterized by a compact structure, stable operation and high versatility.

It allows you to control from the cab (using cables and a joystick) two double-acting actuators or (after plugging one of the ports) single-acting actuators.

It is possible to connect in series to an existing system (pressure sleeve required).

Thanks to the latch with a latch, the distributor is ideal for machines and devices where there is no need to constantly keep your hand on the joystick.

Distributor (high quality), monoblock, with a parallel system and a floating (absorbing) chamber.

!ATTENTION! In a given manifold, the section with a latch is located in only one section with a FLOATING FUNCTION

Application: The manifold is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry or construction.

Universal distributor, used in various types of machines such as: Cyclops

Tury

Loaders

Plows

Forklifts and many others

Three-position slider (1 - 0 - 2) with a latch, i.e. it holds the position in the working position on its own

Neutral position 0 (joystick set in vertical - the cable is slack) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique forward position) the actuator piston rod extends.

Working position 2 ( joystick set in a diagonal position backwards) the actuator piston rod retracts.

Three-position slider (1 - 0 - 2) on a spring returns to the vertical position

Position 0 neutral (joystick set vertically - the cable is slack) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique forward position) the actuator piston rod extends.

Working position 2 (joystick set in an oblique position backwards), the actuator piston rod retracts.

Connection: Feed (P) BSP 3/4''

Return (T) BSP 3/4''

Output to BSP 1/2'' sections

BSP 3/4' connection

Technical specifications: Oil flow: 0 - 80 l/min

Maximum working pressure: 300 bar

Permissible ambient temperature: -40℃ to +60℃

Permissible oil temperature: -15℃ to +80℃

Equipped with a safety valve.

Solenoid valve 6/2 12v 90 l/min with plug Manufacturer: SM-G (SKRAW MET GROUP) This solenoid valve is an ideal solution when a hydraulic distributor is used (to control the actuator). we will not have an additional section to control another actuator.

Used in hydraulic control, most often with a 2-section distributor, as a 3-section, e.g. gripper, crocodile, etc.,

For one block up to 3 valves can be connected in series using flanges.

High-quality solenoid valve, characterized by compact structure, stable operation and high versatility.

Application: The distributor is perfect for powered machines and devices hydraulically.

It can be used in agriculture, horticulture, forestry and construction.

Example of use of the solenoid valve: two double-acting hydraulic cylinders controlled by one section in the distributor. Thanks to it (using electric impulse caused by the button), we can control two independent double-acting actuators.

This button is usually located on the control element, i.e. a lever or joystick.

It should be taken into account that it does not allow you to control two actuators at the same time.

Technical data: Threads (BSP): 3/4'

Maximum oil flow: 90 l/min

Voltage: 12 V

Maximum working pressure: 315 bar

Permissible ambient temperature: -40℃ to +60℃

Permissible oil temperature: -15℃ to +80℃

CONNECTION:A1 - A2 POWER SUPPLY / RETURN (regardless of whether A1 or A2 will be return or power supply)B1 - B2 - C1 - C2 OUTPUTS FOR RECEIVERS (e.g. ACTUATORS) Cable to control the ball distributor 1.5 m POLISH product SUPER DURABLE The cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick / lever.

It can be used in agriculture, fruit growing, forestry, construction or broadly understood industry.

Ends: The end of the cable on the joystick side ended with a ball with a diameter of 14mm

The end of the cable on the distributor side, cable body thread M16x1.5, slider thread M6x1.6
