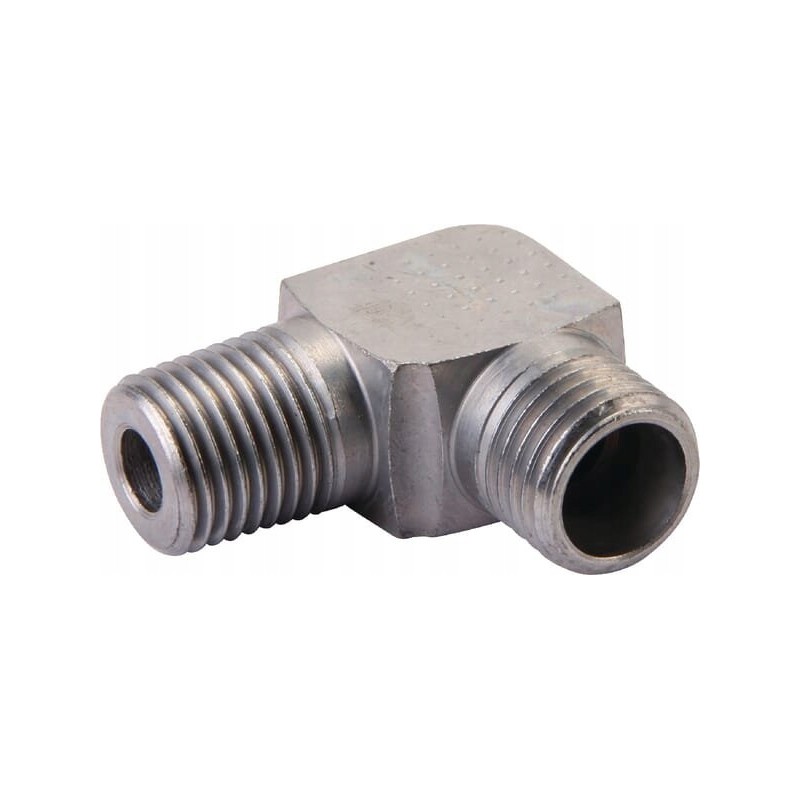

Angle connector gz npt wes 12s m20x1 5 3 8

Angle connector external thread NPT WES, 12S M20x1.5 3/8' Parameters

Part Number: WES12S38NPT

Unit: Piece

Manufacturer: Voss

Shape: Elbow - 2 Side Connection

Connector Thread Diameter: 3/8 inch

Connector Thread Length: 15.2 mm

Connector Thread Type: NPT

Wrench Size for Connector No. 1: 24.0 mm

Connector No. 2 Male/Female Type: Female

Connector No. 2 Thread Diameter: 12 mm

Connector No. 2 Thread Diameter: M20

Connector No. 2 Thread Pitch: 1.50 mm

Connector No. 2 Thread Type: Metric

Size wrench for connector no. 2: 22.0 mm

Pipe diameter: 12 mm

ISO standard: 228

Internal diameter: 8 mm

Body height: 22 mm

Angle: 90 °

Surface treatment: Galvanized

Working pressure max.: 630 BAR

Series: S

Maximum tightening torque: 55 N m

Dimension from the axis of the joint to the end of the next joint 21.5mm

Dimension from the axis of joint no. 2 to the end of the next joint 29mm

DIN standard

- 2353

- 228

- 3852

- 2401
