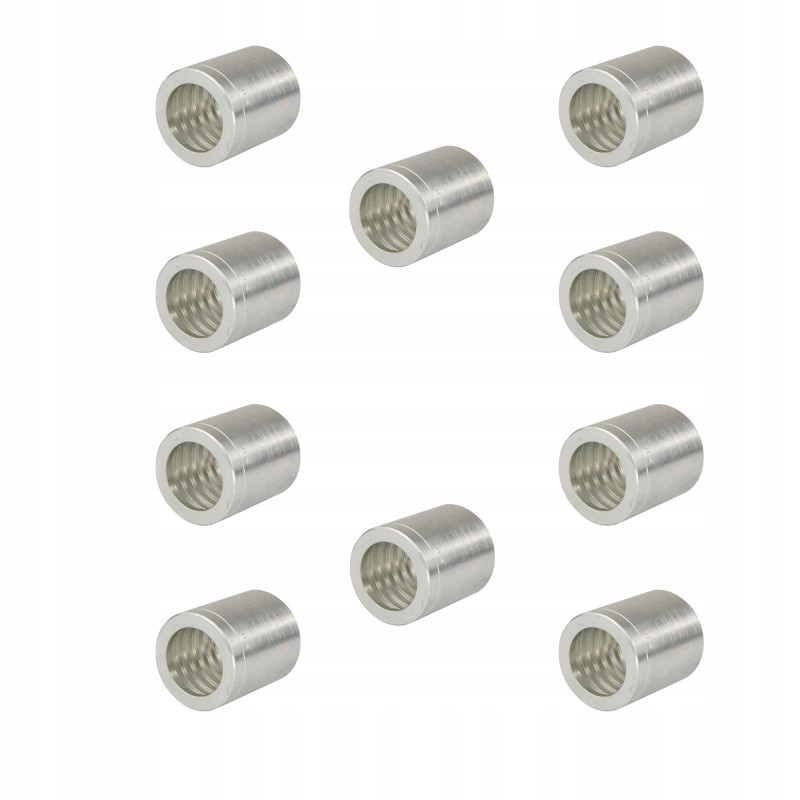

Ferrule for crimping 2sn dn16 x10 hydrolider

SET OF 10 PIECES FOR CONNECTION OF 2SN DN16 HOSE Production:

Original product of the Hydrolider brand, symbol: 4.03.02.016.10

Application:

Ferrule used in the production of hydraulic hoses, widely used in agriculture, industry and forestry.

Designed for fitting on hydraulic hoses from the DN16 group with double braiding. Fits all hoses from our offer:

Hydrolider, Agriflex, Semperit, Stomil Bydgoszcz.

Fits all types of hydraulic fittings, straight and angled, intended for connection to DN16 pipes with an internal diameter of 16 mm.

Technical data:

Standard coverage of our elements for the production of cables: Electrolytic protective coating ZN alkaline - minimum thickness 8µm Type A chromate passivation, free of chromium (VI) in accordance with DIN EN 15205.

Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN16 2SN or other with an external diameter of 25mm
