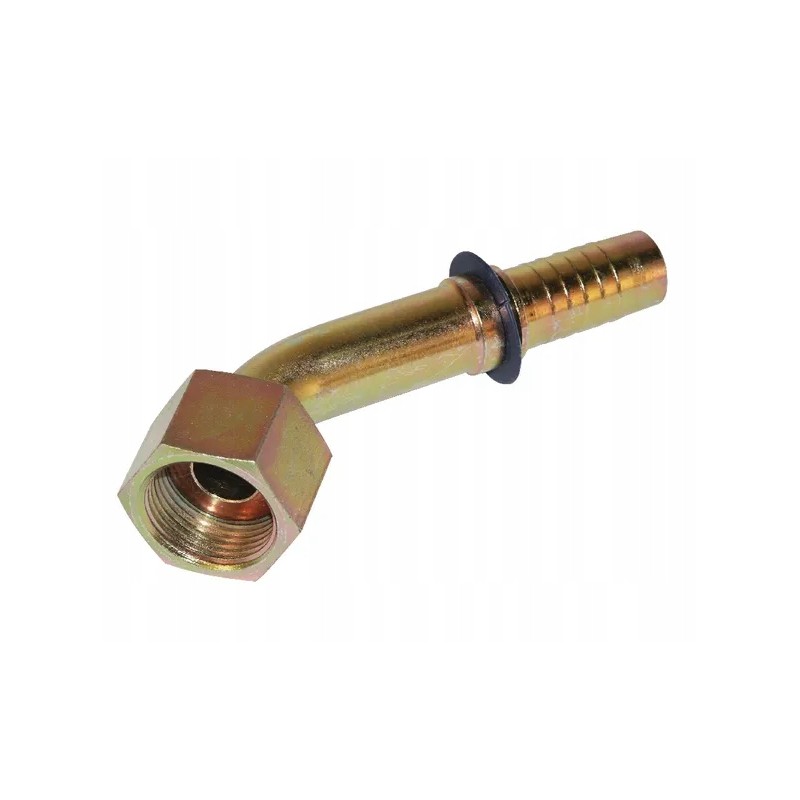

PAV131145 Adapter DN13-11/16 ORFS 45° Shape

Elbow - 2 sides of connection

Connector type no. 1

Swivel nut

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

ORFS

Connector thread diameter

13/16 inch

Connector Thread Type

UNF

H Wrench Size for Connector No. 1

27.0 mm

Connector Type No. 2

Hose Barb

Connector Type No. 2 - Male/Female

Male

Connection Diameter No. 2

1/2 inch

Diameter of joint No. 2

13 mm

C Dimension from the center of the joint to the bottom of the next joint

45 mm

D Dimension from the center of joint No. 2 to the end of the next joint

16 mm

Angle

45 °

Material

Steel

Surface treatment

Zinc plated

White passivated

Connection

UNF union nut with flat seal (ORFS)

Application

Only for flat seals (ORFS)
