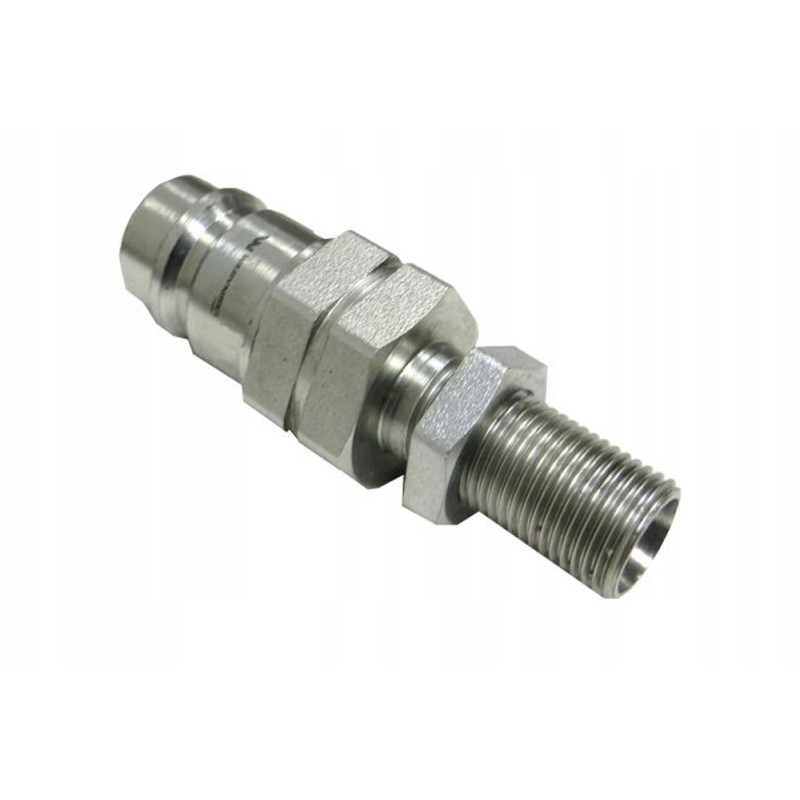

HYDRAULIC QUICK CONNECTOR LONG PLUG M16X1.5 EXTERNAL THREAD EURO (9100816W) (ISO 7241-A) WARYŃSKIHydraulic quick connector Waryński - EURO plug (long). The most popular hydraulic quick couplings with a very wide range of applications. The quick couplings are designed in accordance
with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail
characteristics and dimensions to enable compatibility of quick couplings manufactured by
different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other
manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.
They solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand.
Specification:
Designation: WIAM16SZL
Operating temperature: from -25°C to + 120°C
Thread: External M16x1.5 (long with locknut)
Max. working pressure: 25.0 Mpa / 250 bar
Standard: (EURO ), ISO-7241-A (ISO-A)
Type: plug
Cone - thread: 10L (10mm)
Fits sockets: WIAM14MZ, WIAM16MZ, WIAM16MZL, WIAM18MZ, WIAM18MZL, WIAM22MZ, WIAM22MZL, WIAR12MW, WIAM14MZ-PP, WIAM16MZ-PP, WIAM16MZL-PP, WIAM18MZ-PP,
WIAM18MZL-PP, WIAM22MZ-PP, WIAM22MZL -PP, WIAM20MZ -PP, 9100822G, 9100822GL, 9100818G, 9100818GL, 9100816GL, 9100814G,
Fits the cover: RM-WTYK12Z
Replacement indexes: WIAM16SZ, 9100816W, B300-HP08 2L1016
Producer: Waryński
WIAM16SZL
