Cetop ng6 7s 24v 4xj ha 7xe hydrolider distributor

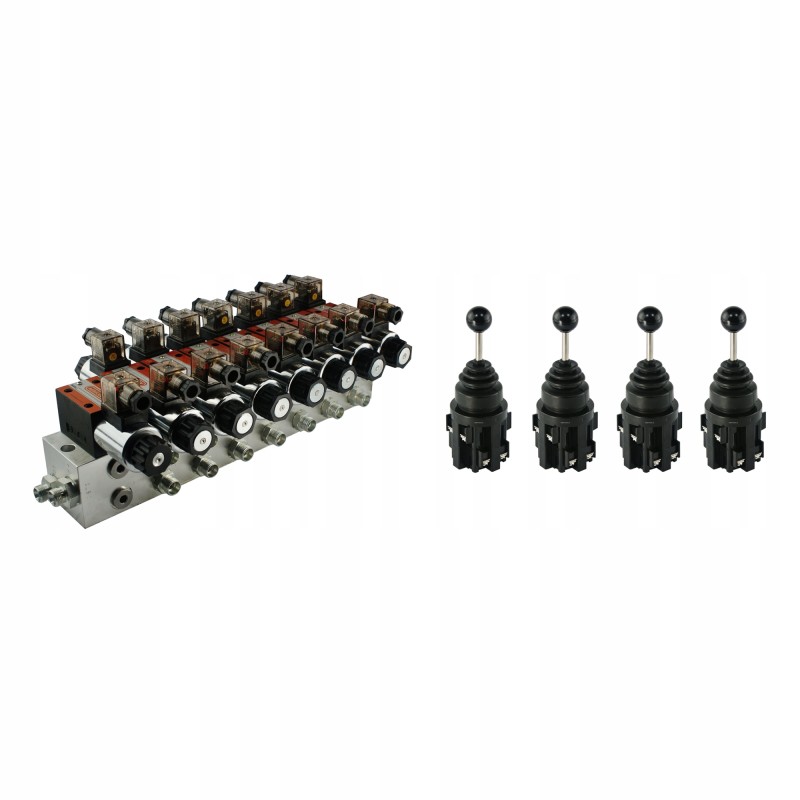

HYDRAULIC DIVIDER, 7 SECTIONS, CETOP 03 NG6, ELECTRICALLY CONTROLLED 24V, IN A SET WITH JOYSTICKS AND PLUGS Production:

Original product of the Hydrolider brand, manufacturer's symbol: 1.10.65.072

Application:

Has widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, machines construction, loaders, excavators, sweepers, industrial machines and other devices with a hydraulic system.

A joystick, also known as a lever manipulator, allows you to control two sections in an electrically controlled hydraulic distributor.

Technical data:

The set includes:

distributor plate

starter section

seven distributors

set of 24DC electrical plugs

set of connections with M18x1.5 output

four joysticks

Recommended oil flow in the system: 0 - 50 l/min.

Example control: seven double-acting cylinders.

Material:

Distributor body and steel slider, electrical plugs and plastic tightening nuts, steel or aluminum block depending on the batch, plastic joystick.

GENERAL INFORMATION DIVIDER: Principle of operation:

The distributor has one starting section and seven working sections. The starting or unloading section is necessary, it is intended to relieve the pump when we do not control any working section of the distributor.

No working section will work if no current is passed to the starting section, therefore the electrical connection must be configured in such a way that each electrical signal sent to the working section must simultaneously reach the starting section.

Control:

The starting section slider is two-position (0 - 1), spring-loaded, i.e. it returns on its own to the neutral position after cutting off the power supply. When the slider is in the neutral position, the oil flows to the overflow, the pump is then relieved.

Principle of operation of the slider:

Position 0 neutral (current supply to the coil cut off) is not possible obtaining pressure on the working sections.

Working position 1 (power supply to the coil open) allows obtaining pressure on the working sections.

The working section slider has three positions (1 - 0 - 2), on spring, i.e. it returns to the neutral position after cutting off the power supply.

Principle of operation of the slider:

Neutral position 0 (the power supply to both coils is cut off) the actuator piston rod is standing - the oil goes to overflow.

Working position 1 (power supply only to the first coil), the actuator piston rod extends.

Working position 2 (power supply only to the second coil), the actuator piston rod retracts.

On the right, hydraulic diagrams, from the top a diagram of the starting section and below a diagram of the working sections:

Current:

Power supply direct current (DC) 24V

Electrical plugs have diodes that light up when current is applied to the coil.

Connection (internal threads in the body):

Power supply from the pump (P): internal thread BSP 1/2''

Return to tank (T): female thread BSP 1/2''

Sections (A1, A2, A3, A4, A5, A6, A7 , B1, B2, B3, B4, B5, B6, B7): BSP internal thread 3/8''

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

Overflow valve factory set to 175Bar

Possibility of self-adjustment, full turn change o 30Bar

Oil types recommended by AGRICOLA:

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

GENERAL INFORMATION JOYSTICK: Has 4 unstable positions and one stable, neutral middle position. If the controller releases the joystick, it returns to the middle - neutral position. Designed for installation in a Ø 30 mm hole. Installation is done by unscrewing the lever ball, unscrewing the ring with cover, inserting the joystick through the hole and screwing the ring and ball back on. It has a rubber sealing cover that protects against dust, water and is resistant to oil.

EXAMPLE OF OPERATION WITH A DISTRIBUTOR:

Neutral position 1 (lever vertical), cylinder piston rods are stationary - oil goes to the overflow.

Working position 2 (lever in forward position), the piston rod of the first cylinder extends.

Working position 3 (lever in the backward position), the piston rod of the first cylinder retracts.

Working position 4 (lever to the left), the piston rod of the second cylinder extends.

Working position 5 (lever to the right), the piston rod of the second cylinder retracts.

PARAMETERS :

Dimensions: 51 × 55 × 146 mm

Lever material: Steel

Operation: Mono stable (without latch)

Number of working positions: 4

Contact sets: 4 x NO

AC contact load capacity: 6A / 250V (with resistive load)

DC contact load capacity: 2, 2A / 110V (with resistive load)

Insulation resistance min. : 100MΩ

Test voltage: 2.2kV

Mechanical durability: 5*1050 cycles

Electrical durability: 5*1050 cycles

TEMPERATURE RANGE

Operating temperature: -20....50°C

Important!!!

Agricola sets have been designed in such a way that it was easy to assemble them myself. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent untwisted. The set includes precise, pictorial assembly instructions along with a list of individual elements included in it.
