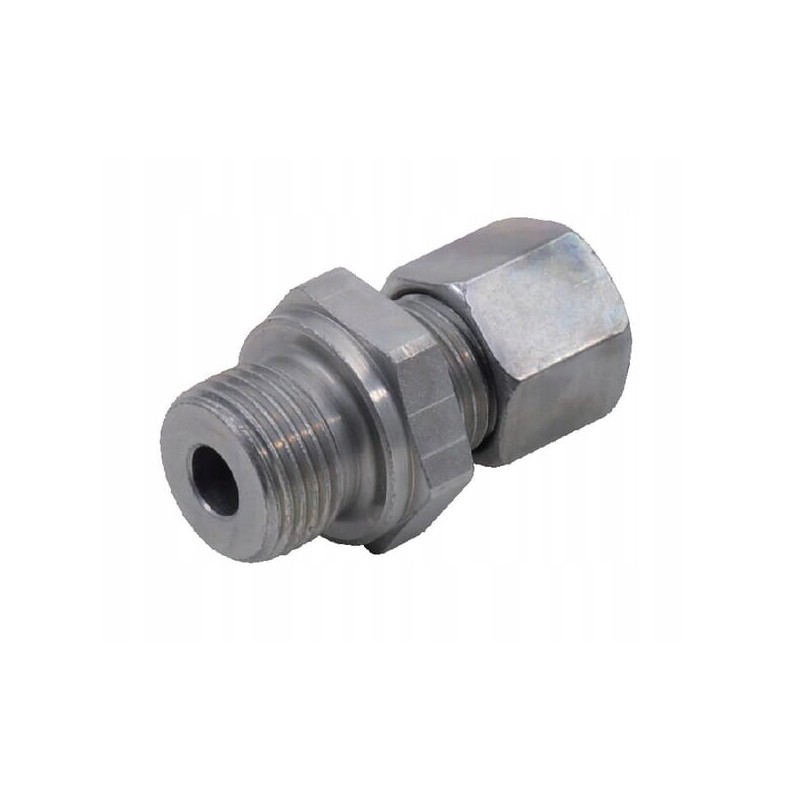

Straight connection m14x1 5 8l m22x1 5

Straight connection M14x1.5 8L - M22x1.5 Parameters

Part Number: GEV8LM22

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 Sides Connection

Connector Type No. 1: Cutting Ring

Connector Type No. 1 - Male/Female: Male

Connection Diameter: 8 mm

Connector No. Thread Diameter 1: M14

Connector Thread Length: 14 mm

Connector No. 1 Thread Pitch: 1.50 mm

Wrench Size for Connector No. 1: 27.0 mm

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/Female: Male

Thread Diameter connection no. 2: M22

Thread pitch of connection no. 2: 1.50 mm

Thread type of connection no. 2: Metric

Wrench size for connection no. 2: 17.0 mm

Pipe diameter: 8 mm

ISO standard: 228

Working pressure max.: 400 BAR

Series: 8L

Dimension from the axis of the joint to the end of the next joint 26mm

Dimension from the axis of joint no. 2 to the end of the next joint 11.5mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
