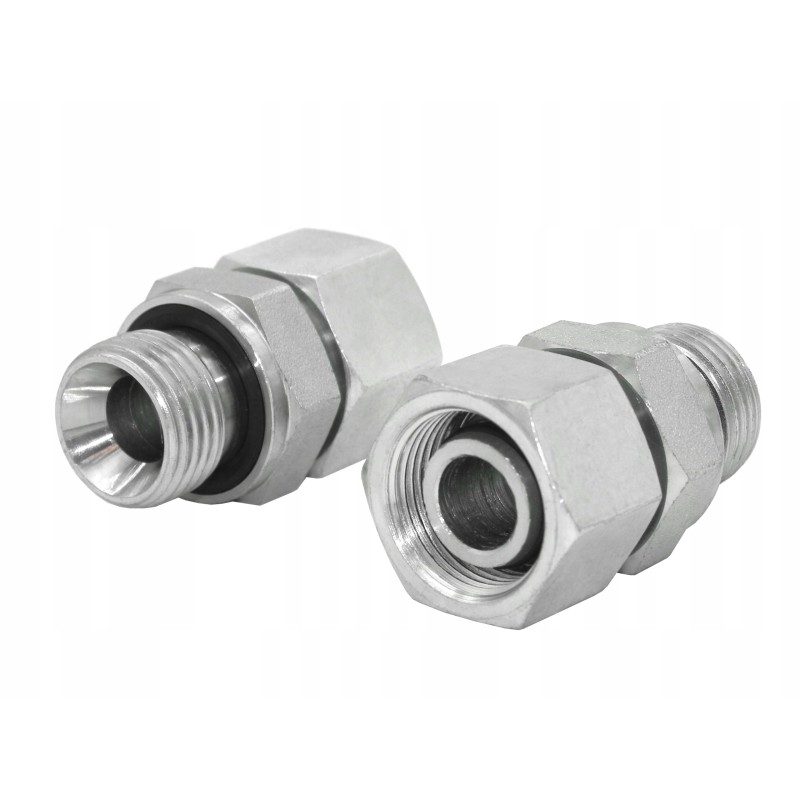

Hydra BSP connection 1 4 m16x1 5 8s nut

HYDRAULIC CONNECTION BSP 1/4'' - M16x1.5 8S WITH NUT Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection with rubber seal, screwed into the body of e.g. pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic lines.

The side intended for screwing into the body has an ED seal, in this place it is not necessary to use additional seals.

The other side is intended for screwing on a pipe, elbow or other fitting. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is also not required here.

The connection is intended only for screwing into the body and is not suitable for connecting two wires. This is done using connectors that can be purchased at our other auctions.

Technical data:

Thread on the body side: external inch BSP 1/4''

Thread on the other side: internal metric 16x1.5 8S - heavy standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
