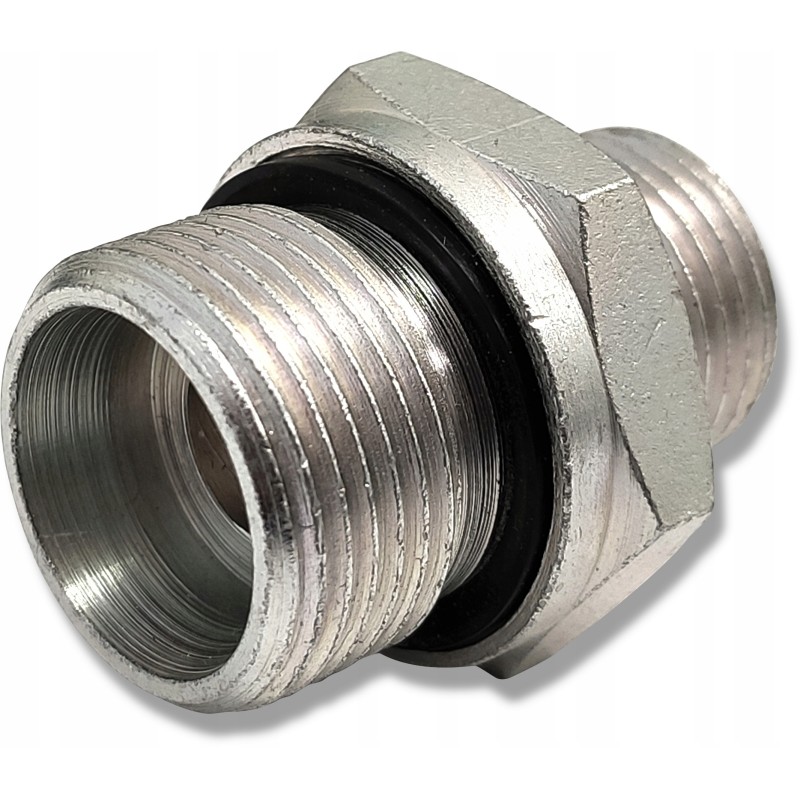

Straight hydraulic connection, nipple 16 16

STRAIGHT HYDRAULIC CONNECTION NIPPLE M16 M16 SKRAW-MET CODE: [1617]

Attention! Illustrative photos! The actual proportions of the offered connection may vary! In the specifications below, you will find detailed information about the product!

Application:

The hydraulic connection is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

The connection is designed to be screwed into the body of, among others: pump, distributor, etc.

It is used to connect the main components in the hydraulic system with hydraulic lines.

On the connection side there is an ED seal, which fully seals the system.

The other side is responsible for connecting the hydraulic conduit or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

The connection is designed to be screwed into the body. It should not be used to connect two hydraulic lines. For this purpose, connectors available at other auctions are used.

Technical data: Clamping cone angle: 24° (typical for the Polish standard)

Nominal diameter of the passage: 12mm

M1 thread on the body side (thread with seal): external metric 16x1.5

M2 thread on the cable side: external metric 16x1.5

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable, galvanized, resistant steel for corrosion
