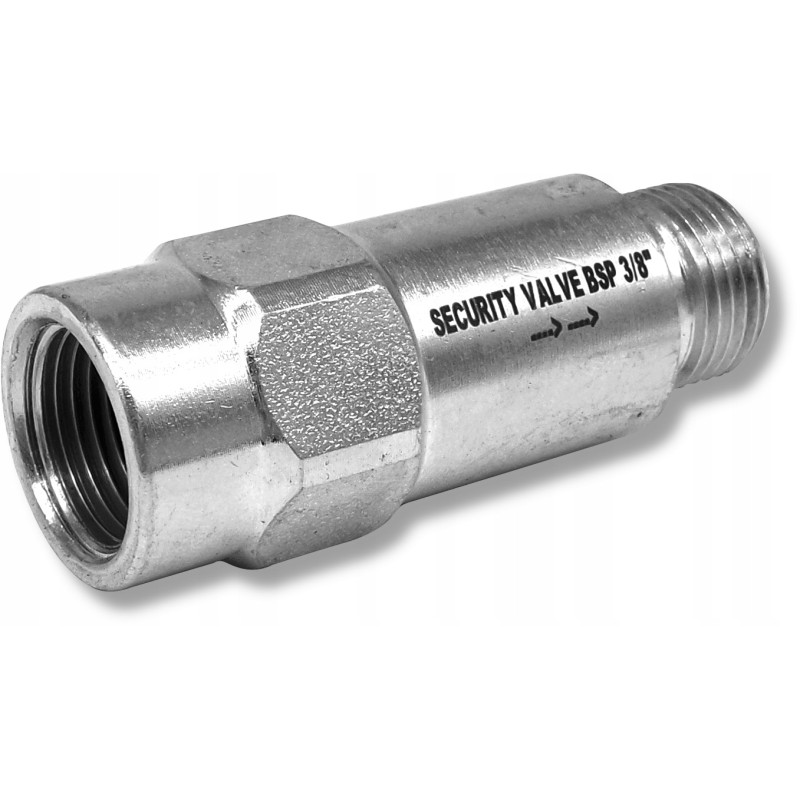

Hydraulic valve of a broken pipe ab 3 8 50l

SAFETY VALVE FOR VUBA AB 3/8' TRAILER CODE SKRAW-MET: [3071]Used in hydraulic systems used in the broadly understood industry, agriculture, construction and forestry.

The valve is most often used for various types of hydraulic actuators ( which are exposed to high pressure forces) in order to protect them in the event of a failure or breakage of the cable.

In such a situation, the valve protects the system against loss of oil contained in the cylinder and, in trailers, against sudden lowering of the unloading box .

The valve should be screwed directly to the hydraulic cylinder body, otherwise it will not be secured. Technical Specifications: Maximum flow: 50L/min

Number of hydraulic holes: 2

Internal thread [BSP]: 3/8'

External thread [BSP]: 3/8'

Permissible maximum pressure: 350 bar

Permissible ambient temperature: -30°C to +50°C

Permissible oil temperature: -30°C to +80°C

Oil type: Mineral oil-based hydraulic oil< p>

Body material: galvanized steel
