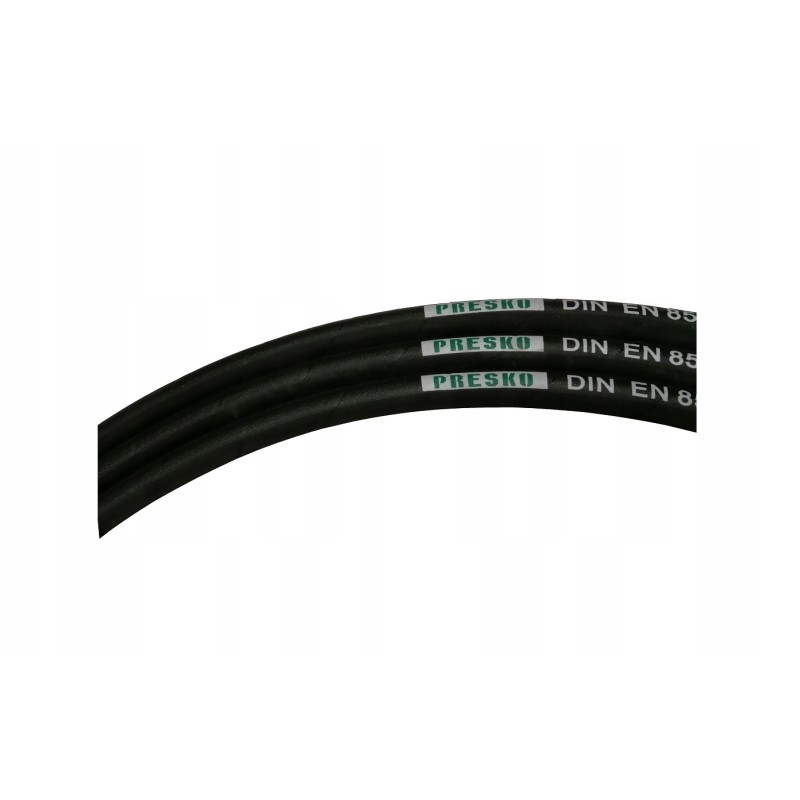

Hydraulic hose 2sn dn8 350 bar

Application:

The original hose used in the production of hydraulic hoses, has a very wide range of applications in agriculture, industry and forestry. Designed for hydraulic systems with a maximum flow of up to 80L/min and a pressure of up to 350 bar.

The hose fits all fittings and sleeves from the DN08 group, which have the 2SN mark in their symbol.

Data technical:

Inner layer: synthetic rubber, with a smooth surface without joints and uniform thickness.

Outer layer: synthetic rubber resistant to oils, fuels and difficult weather conditions.

Inner reinforcing layer: double steel cross braid.

Operating temperature range of all layers: -40°C to 100°C

Recommended nominal operating pressure max. 350 bar.

The test pressure is twice the nominal pressure.

The burst pressure is four times the nominal pressure

Inner bore diameter: 8mm

Outer diameter: 16mm

The price is for 1 meter of hose

The longest possible section is 50 meters.
