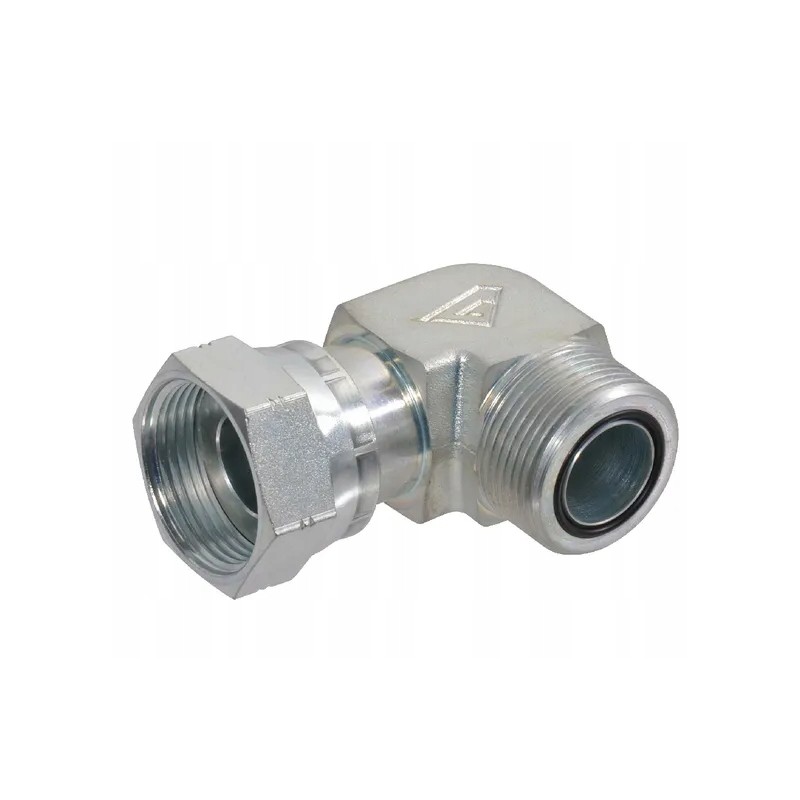

Elbow connector 1 orfs m fm

Part Number, KOO16,

Unit, Piece,

Shape, Elbow - 2 Sides Connection,

Coupling Type No. 1, Swivel Nut,

Coupling Type No. 1 - Male/Female, Female,

F Coupling No. 1 Thread Diameter, 1 inch,

Turns per inch of thread for connector no. 1, 14,

Thread type for connector no. 1, ORFS,

CH1 Wrench size for connector no. 1, 27 mm,

Type of connector no. 2, Thread,

Type of connector no. 2 - male/female, Male,

FConnector No. 2 Thread Diameter, 1 inch,

Turns per Inch for Connector No. 2 Thread, 14,

Connector No. 2 Thread Type, ORFS,

CH2 Wrench Size for Connector No. 2, 30 mm,

L1 Dimension from Connector Centerline to end of the next connector, 33.5 mm,

Dimension from the axis of connector No. 2 to the end of the next connector, 41.5 mm,

Angle, 90 °,

Max. working pressure, 400 BAR,
