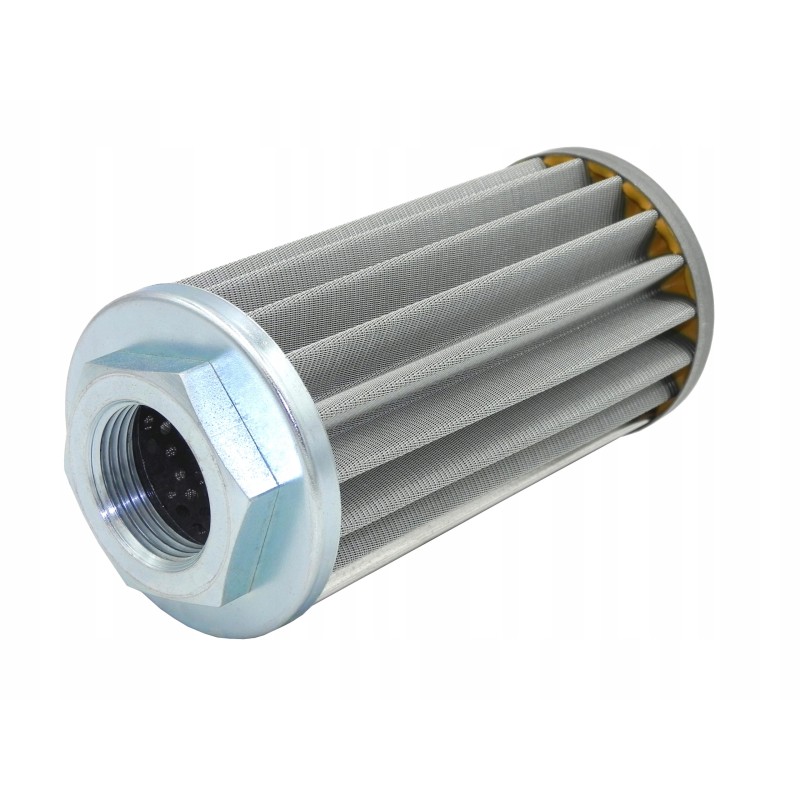

Hydraulic suction filter str0704 sg1 m90 hy18502

HYDRAULIC FILTER STR0704 SG1 M90 SH 77344 Fits: SH 77344, 19910, 331048036, HY12134, HY18506, HY18502, FIOA90, 197926

Application:

Widely used in hydraulic systems in agriculture, horticulture, l forestry, construction and broadly understood industry.

Universal a filter mounted directly to the oil tank, intended for operation on the suction line. We recommend selecting filters with a relatively higher flow than required in a given hydraulic system. The reason for this is that the use of thick oil or quite low, negative temperature can reduce the real flow by up to 40%.

Technical data:

Installation method: completely immersed in the tank

Working fluid: mineral oils according to ISO 2943

Flow: 80L /min

Filtration: 90 microns

Filter material: metal mesh

Temperature: -25°C ~ +110°C

Connection: 1''

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
