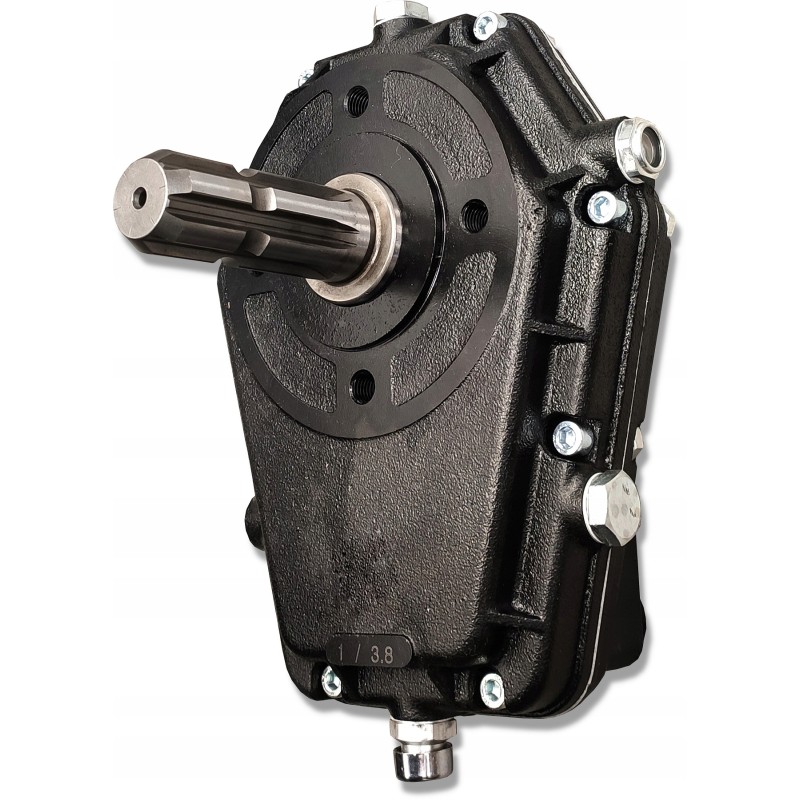

Reinforced multiplier, PTO gear to the pump

MULTIPLICATOR WITH RATIO 1:3.8​SCRAW-MET CODE: [2622]Power take-off shaft gear with a 1.3/8' 6-part profiled shaft. The gearbox is delivered without oil.

Ideally suitable for driving PISTON and 2-WAY GEAR hydraulic pumps in forestry and construction machines and many tractors, including C-330, C-360, C-385, ZETOR, MF and others with MULTIPLE SPLINE Z8×32×36.

The gearbox is mounted on the 1.3/8' PTO shaft using a latch, this solution means that it can be mounted or dismantled quite quickly if it turns out to be that we need a PTO to connect the PTO shaft from another machine.

A gearbox dedicated to driving pumps with a flange suitable for commercial vehicles.​

​

Technical data gear: Gear ratio: 1:3.8

Maximum power consumption (kW): 37

Shaft type (photo above): PTO 1.3/8' DIN9611

Type of drive shaft journal (photo on the right): B8×32×36 ISO 14 (DIN 5462)

Maximum number of revolutions (rpm):

Input: 540

Output: 2052

Torque (da Nm):

Input: 66.0

Output: 16.6

Material:

body - cast iron

gears - steel

Requires filling with gear oil.

Recommended oil: SAE 90

Equipped with a sight glass for checking the gear oil level.

At first use, to increase the life of the gear, it is recommended to change the oil after the first 50 operating hours.< p>

We have 2-way gear pumps matching this gear on other auctions.​
