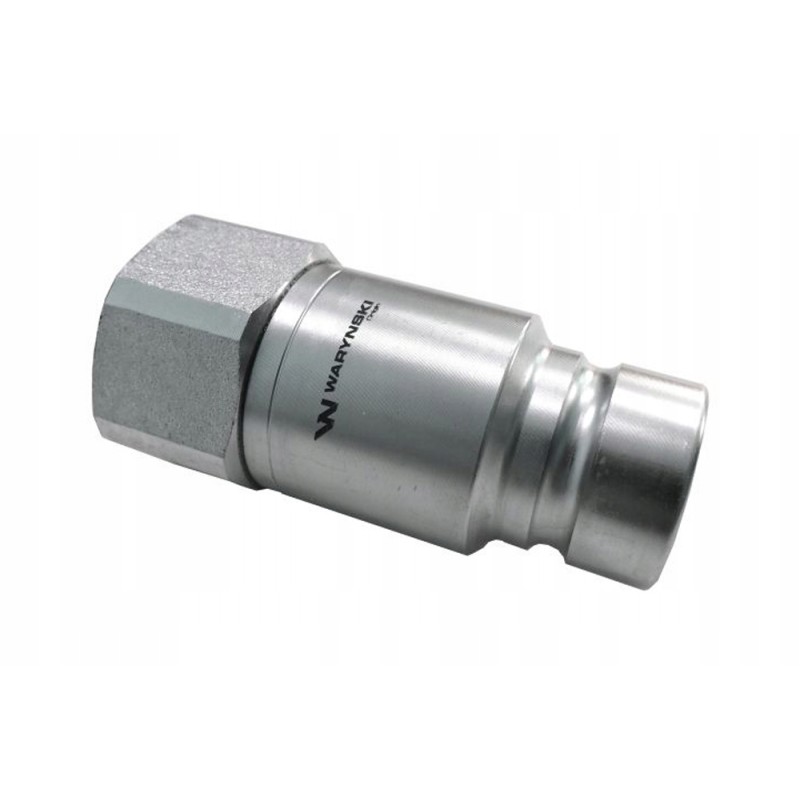

Hydraulic quick connector, dry-coupling, g1 plug, 2 in
  • Hydraulic quick connector, dry-coupling, g1 plug, 2 in
  • Hydraulic quick connector, dry-coupling, g1 plug, 2 in
  • Hydraulic quick connector, dry-coupling, g1 plug, 2 in

Hydraulic quick connector, dry-coupling, g1 plug, 2 in

15010915380421
Waryński
£46.41
Quantity
5 Items

Description
HYDRAULIC DRY-CUT QUICK COUPLING, PLUG G1/2' BSP FEMALE THREAD ISO16028 WARYŃSKIHydraulic dry-cutting quick coupling Waryński - ISO-16028 plug. Quick connectors

are designed in accordance with the dimensional and quality requirements of the ISO 16028

F series that details characteristics and dimensions to enable compatibility

quick connectors produced by various manufacturers in accordance with this standard.

Interchangeable with ISO-F quick connectors from other manufacturers such as: Parker, Faster, Stucchi,

DNP, Tema and others.

Specification:

Operating temperature: from -20°C to +120°C

Thread: Internal 1/2'

Max working pressure: 30 Mpa / 300 bar Standard: ISO-16028 (ISO-F)

Group: Quick connectors

Fits sockets: WIFR12MW

Cone - thread: BSP

Type: Plugin

No. catalog number: WIFR12SW

Application:

Quick connectors used in agricultural, forestry, industrial and construction machines.

Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand.

Producer

Waryński Original

WIFR12SW

Product Details
Waryński
15010915380421
WIFR12SW
5 Items
New

Data sheet

Manufacturer
Waryński
Part Number
WIFR12SW
Original part number
WIFR12SW
