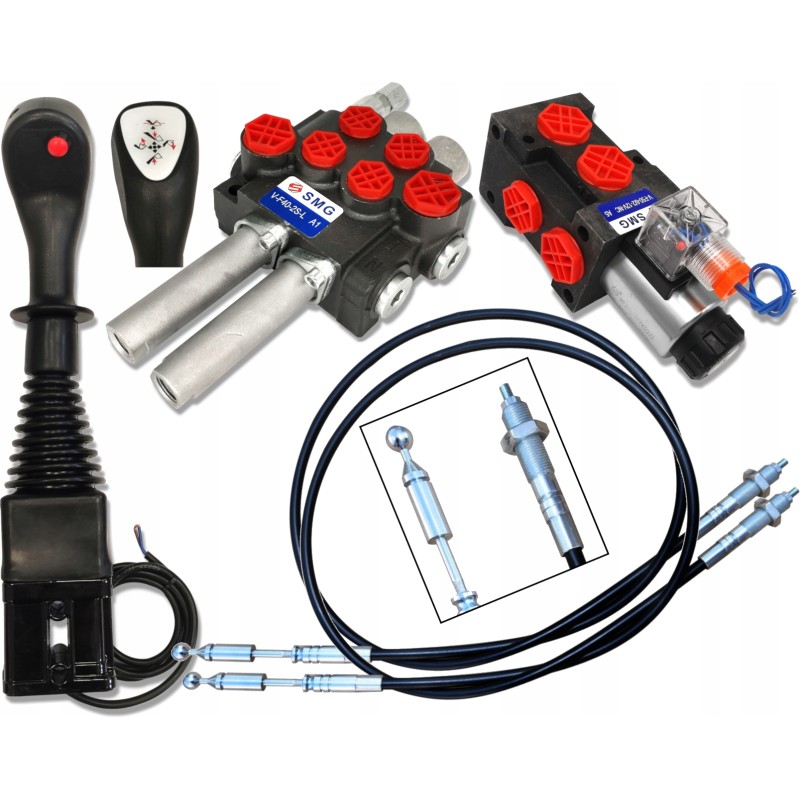

Set of 3 sections for turn joystick cable splitter

3-section hydraulic set 40L/min for TURAKOD SKRAW-MET: [8496] Manufacturer: SM-G (SKRAW MET GROUP) Set: ball joystick with 1 button [0171]

2x long cable 1.5m [0202]

hydraulic distributor for cables, 2 sections 40L/min [1449]

electrovalve - divider 6/2 12V 50L/min [2547]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket tilt).

The set has many advantages that influence dynamic, fast and safe control of the machine.

It can be used in agriculture, horticulture, forestry and construction. It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

2-SECTION HYDRAULIC DISTRIBUTOR, 40L, ON LINKS Manufacturer: SM -G (SKRAW MET GROUP) A high-quality, monoblock distributor characterized by a compact structure, stable operation and high versatility.

It enables the control of two double-acting or (after plugging one of the ports) single-acting actuators.

It is possible to connect in series to the existing system (pressure sleeve required).

Control from the cab using cables and joystick.

Application: The distributor is perfect for powered machines and devices hydraulically.

It can be used in agriculture, horticulture, forestry and construction.

​

Universal distributor, used in various types of machines such as: Cyclops

Tours

Loaders

Plows

Forklifts and many others

​

​ Three-position slider (1 - 0 - 2)​

the spring returns itself to the vertical position

Neutral position 0 (joystick set vertically - the cable is slack) the actuator piston rod is standing - the oil flows to the overflow.

Working position 1 (joystick set in a diagonal position forward), the actuator piston rod extends.

Working position 2 (joystick set in a diagonal position backwards), the actuator piston rod retracts.

​

Connection: Power supply (P) BSP 1/2''

Return (T) BSP 1/2''

Outlet to BSP 3/8'' sections

BSP connection 1/2'

Technical specifications: Oil flow: 0 - 40 l/min

Maximum working pressure: 250 bar

Permissible ambient temperature: -40℃ to +60℃

Permissible oil temperature: -15℃ to +80℃

Equipped with safety valve.

​Solenoid valve 6/2 12v 50 l/min with plug Manufacturer: SM-G (SKRAW MET GROUP)​

This solenoid valve is an ideal solution when a hydraulic distributor is used ( to control the actuator) we will not have an additional section to control the next actuator.

Used for hydraulic control, most often with a 2-section distributor, as a 3-section, e.g. gripper, crocodile, etc.

It is possible to connect in series.

A high-quality solenoid valve, characterized by a compact structure, stable operation and high versatility.

Application: The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

Example of use of the solenoid valve: two double-acting hydraulic cylinders controlled by one section in the distributor.

Thanks to it (using an electric impulse caused by the 'P' button), we can control two independent double-acting actuators.

​

This button is usually located on the control element, i.e. a lever or joystick.

You should take into account the fact that it does not allow you to control two actuators at the same time.

​

Technical data: Threads (BSP): 1/2'

Maximum oil flow: 50 l/min

Voltage: 12 V

Maximum operating pressure: 315 bar

Permissible ambient temperature: -40℃ to +60℃

Permissible oil temperature: -15℃ to +80℃

​CONNECTION:​

P1 - P2 POWER SUPPLY / RETURN ( regardless of whether P1 or P2 is a return or power supply)A - B - C - D OUTPUTS FOR RECEIVERS (CYLINDERS)​

JOYSTICK WITH 1 BUTTON Designed for mechanical control of frame lifting, bucket inclination and bale grabber or crocodile.< p>

A solid joystick enabling mechanical control of the three-way hydraulic control valves of TURA (loader) using two cables and one button.

​

Allows for remote control (from the cab) distributors located outside the cabin.

Application:Dedicated to controlling TURA 1, 2, 3 in tractors such as:

URSUS

ZETOR

MF and derivatives.

Perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in various types of machines, i.e. agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, industrial machines and others.

Easy to install. Specification technical: Operating temperature: from -30°C / to +80°C

Cable opening Φ14 mm

Lock lever

M8 self-locking pin for cable mounting

Material:ergonomic, hardened plastic handle

Aluminum alloy base

The joystick has a safety mechanism (2) that allows you to lock the joystick head movements to prevent accidental start:​

Locked joystick headUnlocked joystick head​Cable to control the 1.5m ball distributor. POLISH product​

SUPER-DURABLEThe rope is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick / lever.

It can be used in agriculture, horticulture, forestry, construction and industry in general.

Ends: The end of the cable on the joystick side ended with a ball with a diameter of 14mm

Cable end on the distributor side, cable body thread M16x1.5, slider thread M6x1.6

​
