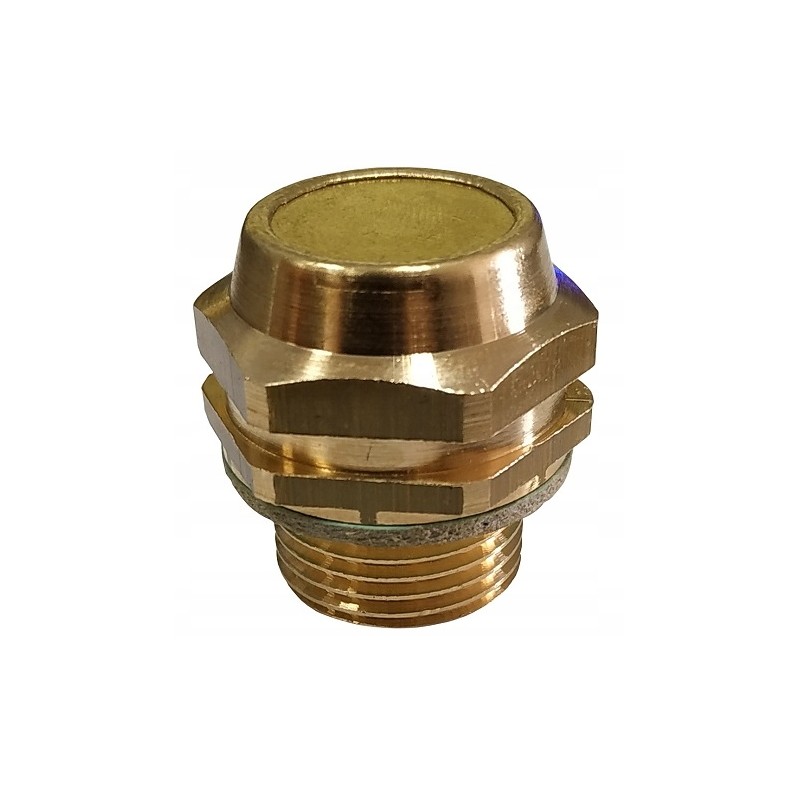

Hydraulic cylinder breather 3 8

MEMBRANE AIR AIR VENT WITH G3/8' THREAD [1821]

The air bleeder is used to convert a double-acting cylinder into a single-acting cylinder.

To convert a double-acting cylinder into a single-acting cylinder, simply select a bleeder with the appropriate thread and screw it in it into one of the two hydraulic outputs on the actuator.

Usually it is the upper exit, from the piston rod side.

The actuator converted in this way will work as a single-sided actuator.

Air circulation holes are placed on the sidesTechnical specification:Type: ASEP

Built-in bronze filter: 200micron

Thread [BSP]: 3/8'

CH [mm]: 22

h1 [mm]: 15

h2 [mm]: 10

Material: Sintered bronze

W DEPENDING ON DELIVERY, ONE OF TWO TYPES OF AIR VENTS IS SENT: (BOTH TYPES DO NOT DIFFER FROM EACH OTHER IN THE METHOD OF OPERATION - BOTH ARE OF HIGH QUALITY)
