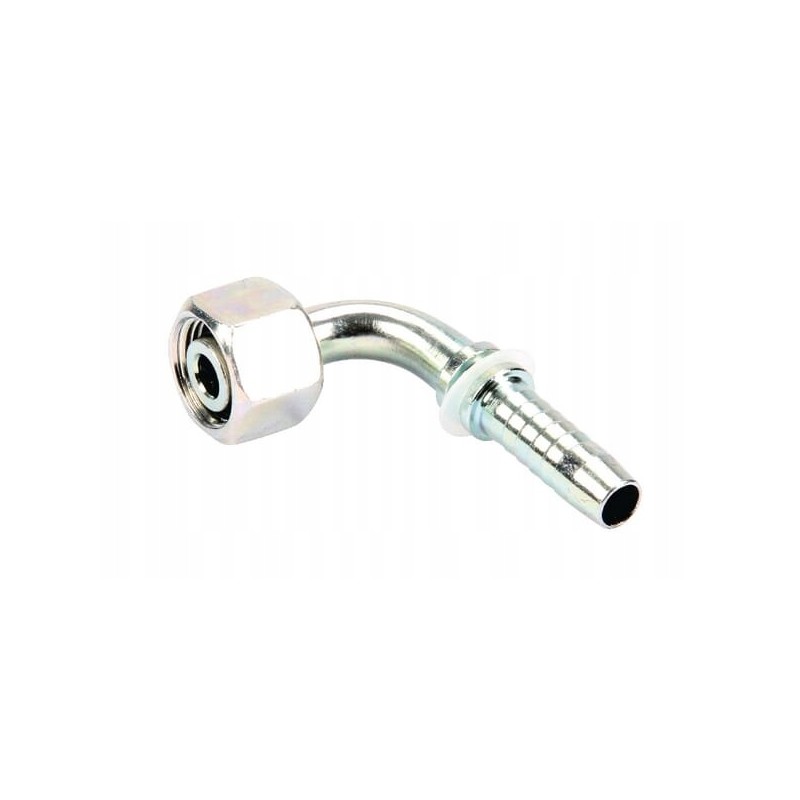

End cap dn10 m18x1 5 12l 90

Tip DN10-M18x1.5-12L-90° Parameters

Part number: PGLO101890

Unit: Piece

Manufacturer: Alfagomma

EAN: 8716106787869

Cone angle: 24 °

Shape: Elbow - 2 sides of the connection

Connection type no. 1: Conical

Type connectors no. 1 - male/female: Female

Type of connector no. 1 - code: DKOL

Thread diameter of connector no. 1: M18

Thread pitch of connector no. 1 : 1.50 mm

Wrench size for connector no. 1: 22.0 mm

Connector type no. 2: Hose connector

Connector type no. 2 - male/female: Male

Connection No. 2 Diameter: 3/8 inch

Dimension from the axis of the connector to the bottom of the next connector: 37 mm

Angle: 90°

Material: Steel

Series: 12L

OE reference number: H1221593-061800

Connection: xx

Type: DKOL

Surface treatment

- Galvanized

- White passivated
